0216 519 47 90
TRAFAG FPT1.0A 8236 71 2393 05 0000 0000 19 58 61 0...1Bar Pressure Transmitter
TRAFAG FPT2.5A 8236 75 2393 05 0000 0000 19 58 61 0...2.5Bar Pressure Transmitter
TRAFAG FPT4.0A 8236 76 2393 05 0000 0000 19 58 61 0...4Bar Pressure Transmitter
TRAFAG FPT6.0A 8236 77 2393 05 0000 0000 19 58 61 0...6Bar Pressure Transmitter
TRAFAG FPT10.0A 8236 78 2393 05 0000 0000 19 58 61 0...10Bar Pressure Transmitter
TRAFAG FPT16.0A 8236 79 2393 05 0000 0000 19 58 61 0...16Bar Pressure Transmitter
TRAFAG FPT25.0A 8236 80 2393 05 0000 0000 19 58 61 0...25Bar Pressure Transmitter
TRAFAG FPT40.0A 8236 81 2393 05 0000 0000 19 58 61 0...40Bar Pressure Transmitter
TRAFAG FPT100.0A 8236 83 2393 05 0000 0000 19 58 61 0...100Bar Pressure Transmitter
TRAFAG FPT1.0M 8236 71 2393 35 0000 0000 19 33 61 0...1Bar Pressure Transmitter
TRAFAG FPT2.5M 8236 75 2393 35 0000 0000 19 33 61 0...2.5Bar Pressure Transmitter
TRAFAG FPT4.0M 8236 76 2393 35 0000 0000 19 33 61 0...4Bar Pressure Transmitter
TRAFAG FPT6.0M 8236 77 2393 35 0000 0000 19 33 61 0...6Bar Pressure Transmitter
TRAFAG FPT10.0M 8236 78 2393 35 0000 0000 19 33 61 0...10Bar Pressure Transmitter
TRAFAG FPT16.0M 8236 79 2393 35 0000 0000 19 33 61 0...16Bar Pressure Transmitter
TRAFAG FPT25.0M 8236 80 2393 35 0000 0000 19 33 61 0...25Bar Pressure Transmitter
TRAFAG FPT40.0M 8236 81 2393 35 0000 0000 19 33 61 0...40Bar Pressure Transmitter
TRAFAG FPT100.0M 8236 83 2393 35 0000 0000 19 33 61 0...100Bar Pressure Transmitter
Main features
- Flush membrane with smooth and plain surface
- Membrane in Duplex steel 1.4462
- Fully welded sensor system
- Excellent long-term stability
About

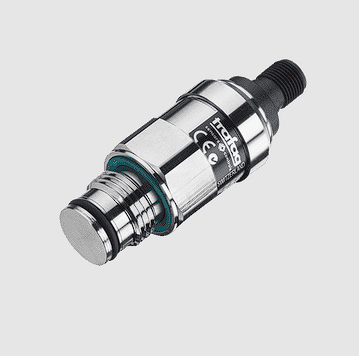

The FPT 8236 pressure transmitter impresses with an absolutely smooth and robust flush-mounted measuring diaphragm made of corrosion-resistant duplex steel. Trafag’s proprietary thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.
Technical Data
| Product code | 8236 |
|---|---|
| Name | FPT |
| Designation | Flush Membrane Transmitter |
| Product category |
Pressure transmitters |
| Measuring principle | Thin-film-on-steel |
| Applications |
Food Industry |
| Accuracy @ 25°C typ. | ± 0.5 % FS typ. |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 … 4.5 VDC ratiometric |
| Electrical connections | EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; Cable |
| Pressure connections | G1/2" m, flush membrane |
| Media temperature | –10°C ... +125°C |
| Ambient temperature | –10°C ... +125°C Cable PUR: -10°C ... +70°C |
