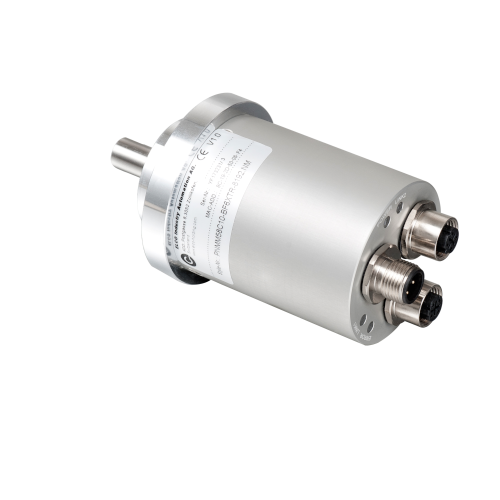

ELCO EAM58-PNOM Series Encoder

General Description:
The ELCO EAM58-PNOM Series is an absolute rotary encoder supporting the PROFINET industrial communication protocol. With its 58 mm compact housing, high resolution, and reliable data transmission, it delivers precise position feedback in automation lines, packaging machines, robotic systems, CNC machinery, and industrial process control applications. Available in single-turn and multi-turn versions.

Technical Specifications:

• Housing Diameter: Ø58 mm

• Material: Aluminum housing, stainless steel shaft

• Shaft Type: Solid shaft or hollow shaft (depending on model)

• Shaft Diameter: Ø6 mm, Ø8 mm, Ø10 mm (optional)

• Protection Class: IP65 (optional IP67)

• Maximum Speed: 6000 rpm

• Load Capacity: 40 N axial, 60 N radial

• Shock Resistance: 100 G / 6 ms

• Vibration Resistance: 20 G (10–2000 Hz)

• Operating Temperature: -20 … +85 °C

• Weight: Approx. 0.4 kg

Electrical Specifications:

• Supply Voltage: 10–30 VDC

• Output Interface: PROFINET IO / Real-Time (RT) and Isochronous Real-Time (IRT)

• Resolution: Single-turn – up to 17 bits, Multi-turn – up to 32 bits

• Connection Type: M12 connector (8 pin, Ethernet M12 D-coded)

Advantages:

• High-speed and synchronized data communication via PROFINET

• Compact housing design for use in space-constrained environments

• IP65/IP67 protection for harsh industrial conditions

• Absolute encoder technology retains position data even without power

• High resolution and precise measurement capability
