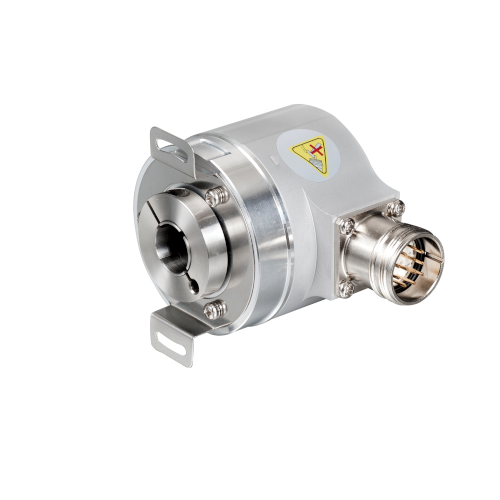

ELCO EAM58-EU Series Encoder

General Description:
The ELCO EAM58-EU Series consists of absolute rotary encoders supporting the EtherCAT communication protocol. With a 58 mm housing diameter, high resolution, high-speed data transfer, and robust mechanical design, they provide reliable position feedback in automation, robotics, CNC machines, packaging lines, and industrial process control systems. Available in both single-turn and multi-turn versions.

Technical Specifications:

• Housing Diameter: Ø58 mm

• Material: Aluminum housing, stainless steel shaft

• Shaft Type: Solid shaft or hollow shaft (depending on model)

• Shaft Diameter: Ø10 mm, Ø12 mm (optional)

• Protection Class: IP65 (optional IP67)

• Maximum Speed: 6000 rpm

• Load Capacity: 50 N axial, 80 N radial

• Shock Resistance: 30 G / 11 ms

• Vibration Resistance: 10 G (10–2000 Hz)

• Operating Temperature: -20 … +85 °C

• Weight: Approx. 0.35 kg

Electrical Specifications:

• Supply Voltage: 10–30 VDC

• Output Interface: EtherCAT (supports CoE – CANopen over EtherCAT protocol)

• Resolution: Single-turn – up to 17 bits, Multi-turn – up to 32 bits

• Data Transmission Rate: 100 Mbps full duplex

• Connection Type: M12 connector (A, B, or D-coded depending on model)

Advantages:

• High-speed and synchronized data transfer with EtherCAT

• High resolution and precision

• Absolute encoder retains position data during power loss

• Rugged design for harsh industrial environments
