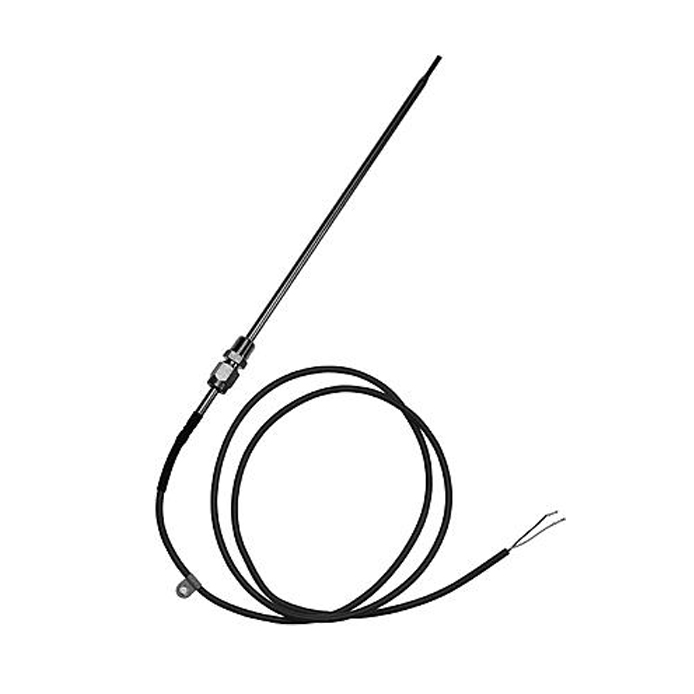

SIEMENS QAE26.95 IMMERSION TYPE TEMPERATURE SENSOR

General Information:
The SIEMENS QAE26.95 is a passive, high-precision immersion temperature sensor designed for measuring liquid temperatures in HVAC and industrial control systems.

Technical Specifications:

• Model: QAE26.95

• Sensing Element: Pt1000 (compliant with EN 60751)

• Sensor Type: Passive

• Measuring Range: -30°C to +130°C

• Immersion Length: 250 mm

• Threaded Connection: M20 x 1.5

• Protection Class: IP54

• Cable Entry: M16 cable gland

• Power Supply: Not required

• Applications:

  • Liquid media temperature control

  • Boilers and piping systems

  • Central HVAC temperature regulation

  • Industrial automation and control systems

Advantages:

• Extended immersion length for deeper measurements

• High accuracy and stability

• Rugged housing for harsh conditions

• Full compatibility with automation systems
