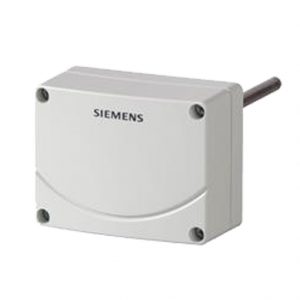

SIEMENS QAE1612.010 IMMERSION TYPE TEMPERATURE SENSOR

General Information:
The SIEMENS QAE1612.010 is an active immersion temperature sensor specifically designed for measuring the temperature of liquids in HVAC applications. It is ideal for optimizing energy use and maintaining temperature control in heating, cooling, and air conditioning systems.

Technical Specifications:

• Model: QAE1612.010

• Sensor Type: Active (with integrated signal output)

• Sensing Element: NTC sensor

• Output Signal: 4…20 mA

• Measuring Range: -50…150 °C

• Immersion Length: 100 mm

• Material: Stainless steel probe, plastic housing

• Protection Class: IP65

• Connection: M16 cable gland

• Power Supply: 13.5…35 V DC / 24 V AC

• Mounting Type: With immersion pocket or direct pipe mounting

Applications:

• HVAC systems

• Boiler and tank temperature monitoring

• Building automation systems

• Energy monitoring systems

Advantages:

• 4-20 mA output enables long-distance signal transmission

• Wide temperature measurement range

• High IP protection ensures suitability for harsh environments

• Reliable and long service life
