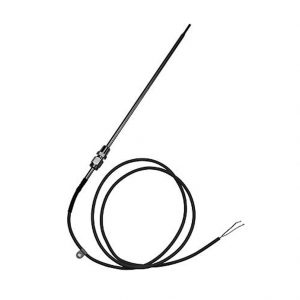

SIEMENS QAE1020.024 IMMERSION TYPE TEMPERATURE SENSOR

General Information:
The SIEMENS QAE1020.024 is an active output immersion temperature sensor designed for precise measurement of liquid media temperatures in HVAC and industrial applications. It is particularly used in monitoring and control systems requiring analog output.

Technical Specifications:

• Model: QAE1020.024

• Sensor Type: Active (with analog output)

• Output Signal: DC 0...10 V

• Measuring Range: -50°C to +180°C

• Immersion Length: 240 mm

• Sensing Element: Thermistor-based electronic sensor

• Operating Voltage: AC/DC 24 V

• Protection Class: IP65

• Threaded Connection: G1/2" or M20 x 1.5 (depending on version)

• Cable Entry: M16 cable gland

• Applications:

  • Hot water and chilled water systems

  • Central HVAC temperature control

  • Industrial process monitoring

  • Analog temperature signal input for automation systems

Advantages:

• Wide temperature range and high accuracy

• Robust IP65 enclosure for harsh environments

• 0...10 V output for full integration with automation systems

• Reliable, long-lasting performance
