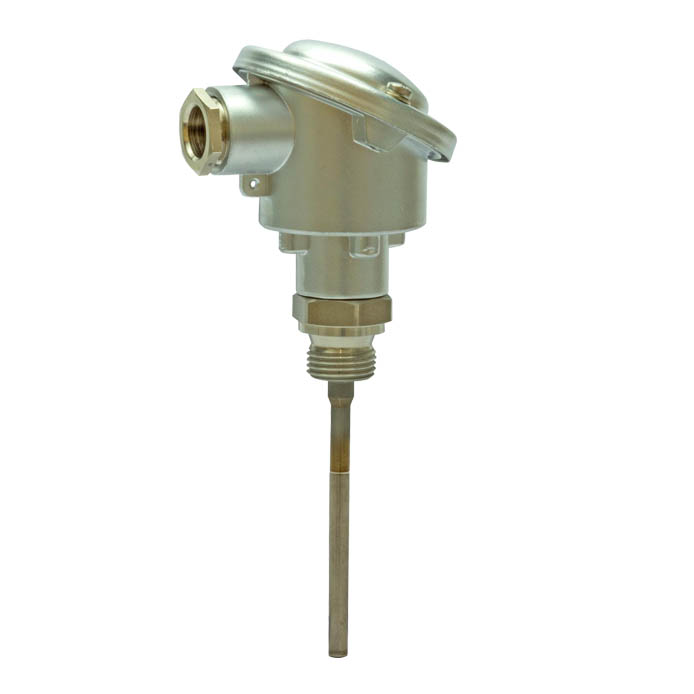

SIEMENS FT-TP/400 IMMERSION TYPE TEMPERATURE SENSOR

General Information:
The SIEMENS FT-TP/400 is a passive immersion temperature sensor designed for accurate temperature monitoring of liquids in HVAC and industrial systems. Its extended probe length makes it suitable for deeper tanks or applications requiring longer reach.

Technical Specifications:

• Model: FT-TP/400

• Sensor Type: Passive

• Sensing Element: Pt100 (100 Ohm @ 0 °C, per EN 60751)

• Measuring Range: -50…150 °C

• Immersion Length: 400 mm

• Mounting Type: For immersion wells or direct installation

• Material: Stainless steel probe

• Protection Class: IP54 or higher (depending on version)

• Connection Type: Screw terminals or cable outlet

• Cable Length: Depends on version

Applications:

• Heating and cooling systems

• Liquid tanks and boilers

• Industrial process monitoring

• Building automation systems

Advantages:

• Extended probe for deep measurements

• Accurate sensing per EN standards

• Robust stainless steel construction

• Easy to install and integrate
