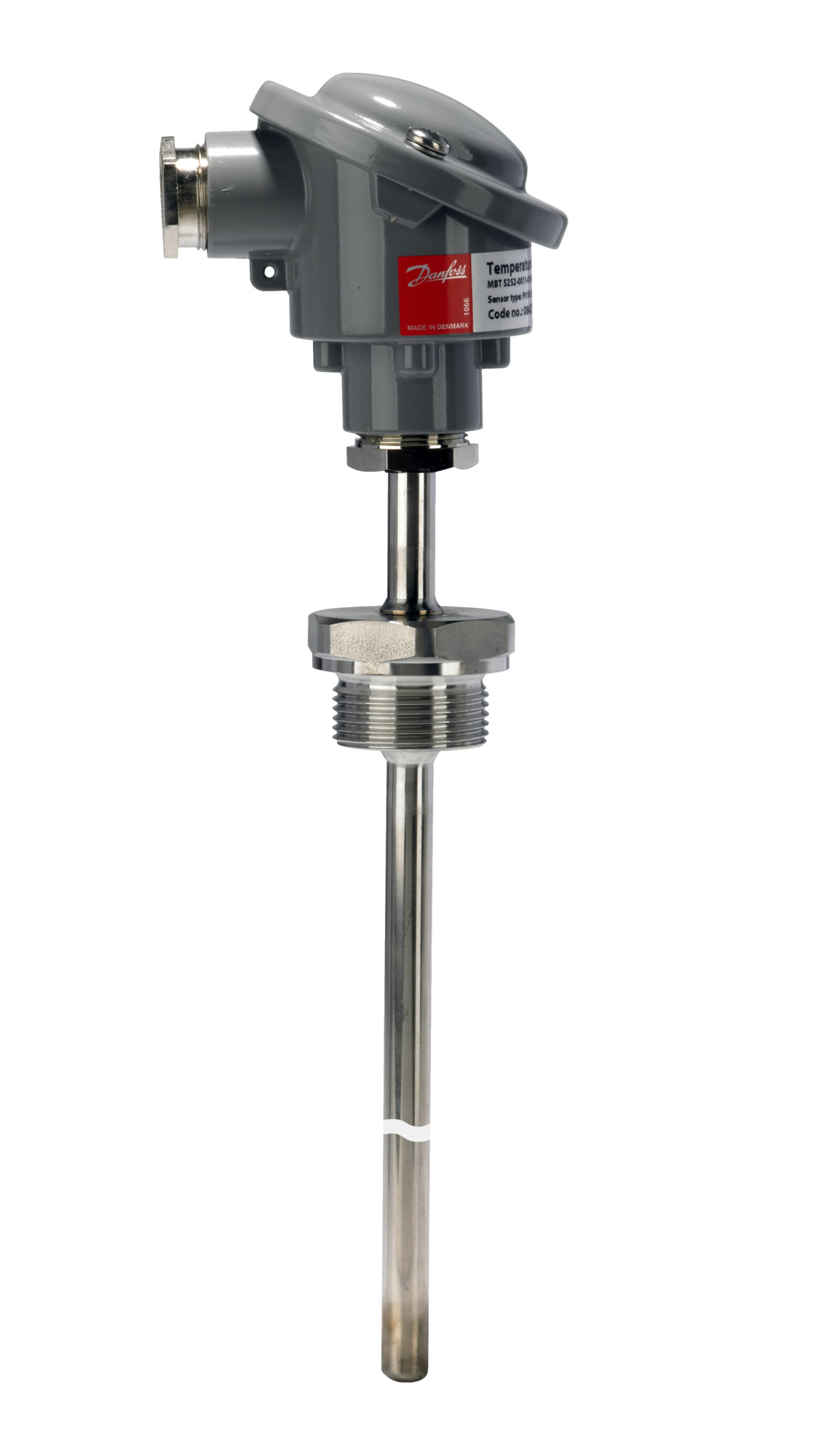

DANFOSS Temperature sensor, MBT 5252, 100 mm, G,1/2
084Z3082
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: Pg 16
Product details
| Gross weight |
0.384 Kg |
| Net weight |
0.351 Kg |
| Volume |
1.124 Liter |
| EAN |
5702423229529 |
| Ambient temperature max. [°C] |
85 °C |
| Ambient temperature max. [°F] |
185 °F |
| Connection material |
Stainless steel |
| Connection standard |
ISO 228 |
| Connection type |
G |
| Electrical connection |
Type B |
| Electrical connection size |
Pg 16 |
| Enclosure rating IP |
IP65 |
| Extension length [in] |
1.97 in |
| Extension length [mm] |
50 mm |
| In scope of WEEE and contain batteries |
No |
| Insertion length [in] |
3.94 in |
| Insertion length [mm] |
100 mm |
| Insertion type |
Fixed |
| Number of terminals [pcs] |
3 pc |
| Output signal [mA] [max] |
20 mA |
| Output signal [mA] [min] |
4 mA |
| Packing format |
Multi pack |
| Process connection Male/Female |
Male |
| Process connection material |
Stainless steel |
| Process connection size |
1/2 |
| Process connection standard |
ISO 228-1-A |
| Process connection type |
G |
| Product group |
Sensors |
| Product Name Description |
Temperature sensor |
| Protection tube diameter [in] |
0.31 in |
| Protection tube diameter [mm] |
8 mm |
| Protection tube material |
AISI 316 Ti |
| Quantity per packing format |
8 pc |
| REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| SCIP dossier no. |
ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6 |
| Sensor elem. resistance [Ohm] |
100 |
| Sensor element [pc] |
1 pc |
| Sensor element standard |
EN 60751 |
| Sensor element tolerance |
Class A |
| Sensor element type |
Pt |
| Sensor Insert |
Exchangeable |
| Supply voltage [V] DC [max] |
30 V |
| Supply voltage [V] DC [max] |
30 V |
| Supply voltage [V] DC [min] |
8 V |
| Supply voltage [V] DC [min] |
8 V |
| Temperature range [°C] [max] |
200 °C |
| Temperature range [°C] [min] |
-50 °C |
| Temperature range [°F] [max] |
392 °F |
| Temperature range [°F] [min] |
-58 °F |
| Transmitter setting range [°C] [max] |
200 °C |
| Transmitter setting range [°C] [min] |
-50 °C |
| Transmitter setting range [°F] [max] |
392 °F |
| Transmitter setting range [°F] [min] |
-58 °F |
| Transmitter type |
Standard EEx |
| Type |
MBT 5252 |
| Type designation |
MBT 5252-0001-0100-0230-L420 |
| Wires [pcs] |
2 pc |
