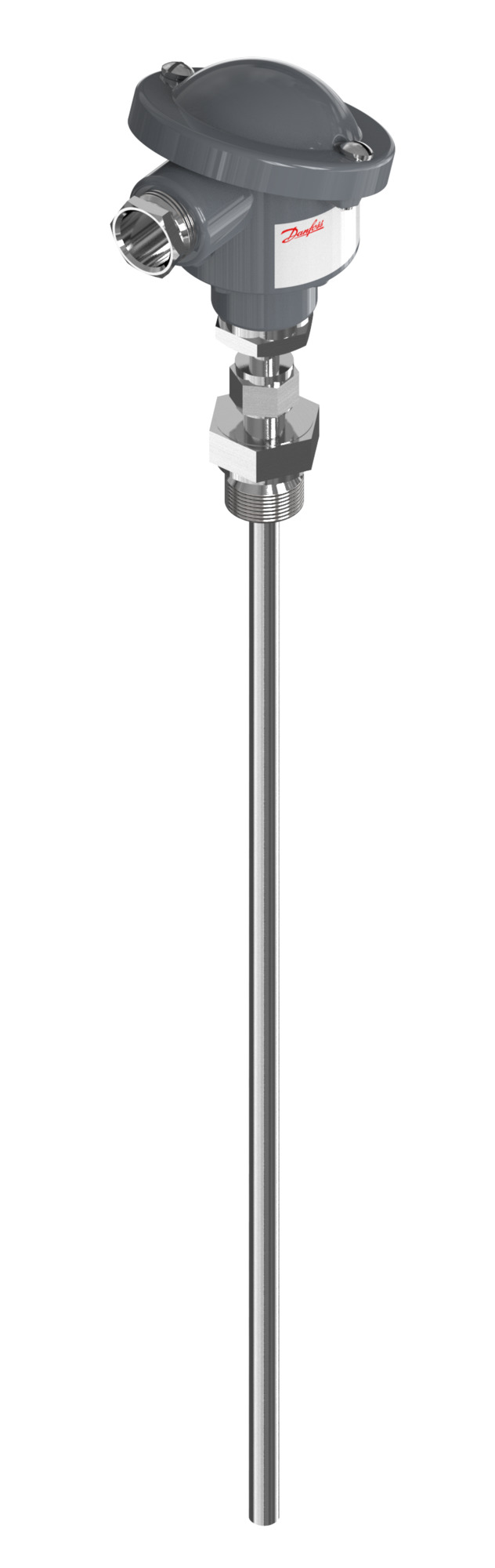

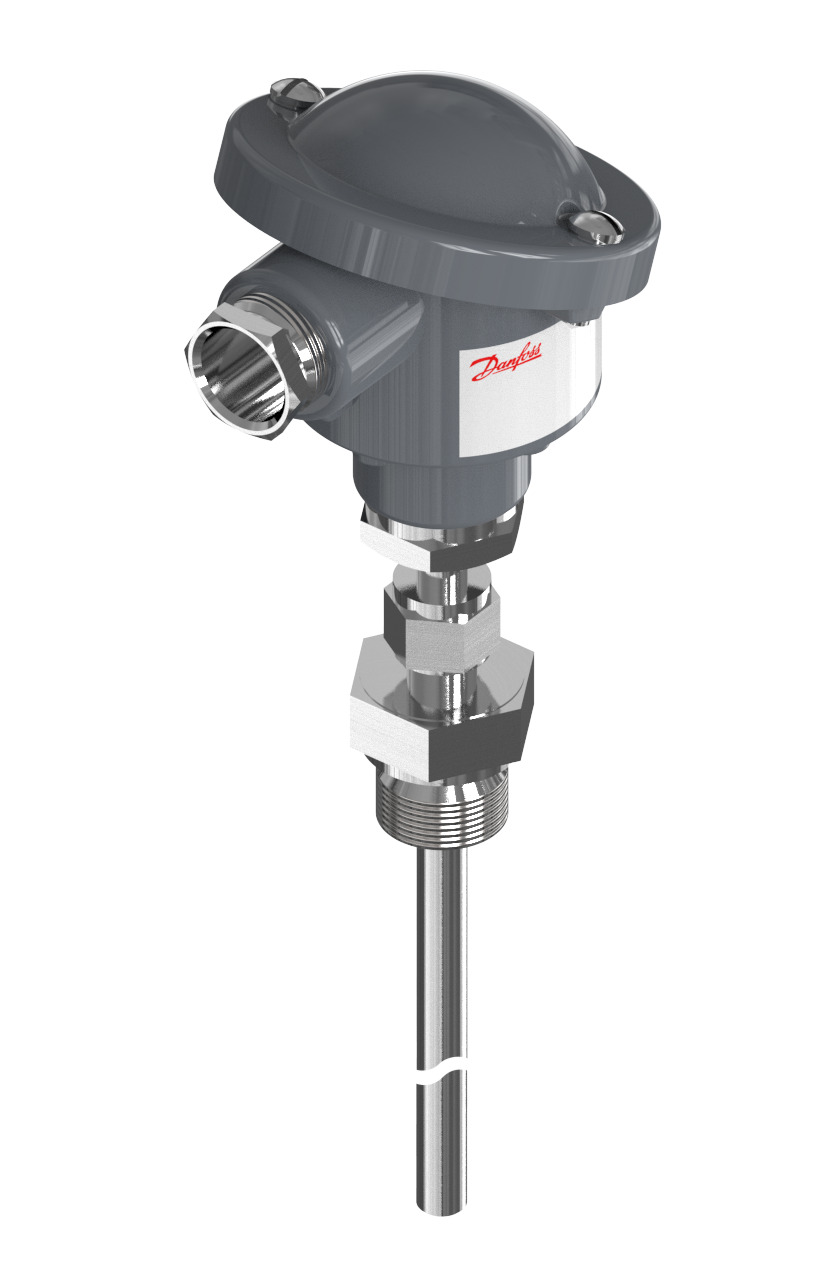

DANFOSS Temperature sensor, MBT 5252, 340 mm, G,1/2
084Z2392
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Type B, Electrical connection size: M20
Product details
Gross weight |
0.464 Kg |
Net weight |
0.454 Kg |
Volume |
2.267 Liter |
EAN |
5702428963275 |
Ambient temperature max. [°C] |
90 °C |
Ambient temperature max. [°F] |
194 °F |
Connection material |
Stainless steel |
Connection standard |
ISO 228 |
Connection type |
G |
Electrical connection |
Type B |
Electrical connection size |
M20 |
Enclosure rating IP |
IP65 |
In scope of WEEE and contain batteries |
No |
Insertion length [in] |
13.38 in |
Insertion length [mm] |
340 mm |
Insertion type |
Fixed |
Number of terminals [pcs] |
3 pc |
Output signal |
Ohm |
Packing format |
Multi pack |
Process connection Male/Female |
Male |
Process connection material |
Stainless steel |
Process connection notes |
Adjustable connection |
Process connection size |
1/2 |
Process connection standard |
ISO 228-1-A |
Process connection type |
G |
Product group |
Sensors |
Product Name Description |
Temperature sensor |
Protection tube diameter [in] |
0.31 in |
Protection tube diameter [mm] |
8 mm |
Protection tube material |
AISI 316 Ti |
Quantity per packing format |
10 pc |
REACH Candidate List substances |
Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
SCIP dossier no. |
ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6 |
Sensor elem. resistance [Ohm] |
100 |
Sensor element [pc] |
2 pc |
Sensor element standard |
EN 60751 |
Sensor element tolerance |
Class B |
Sensor element type |
Pt |
Sensor Insert |
Exchangeable |
Temperature range [°C] [max] |
200 °C |
Temperature range [°C] [min] |
-50 °C |
Temperature range [°F] [max] |
392 °F |
Temperature range [°F] [min] |
-58 °F |
Type |
MBT 5252 |
Type designation |
MBT 5252-0104-0350-4F00-0000 |
Wires [pcs] |
2 pc |
