| Orfis No | Kod No | R134a | R404A | R407C | R22 | |||||
| Kw | TON | Kw | TON | Kw | TON | Kw | TON | |||
| T2 Orifis | 0X | 068-2002 | 0,68 | 0,19 | 0,64 | 0,18 | 0,92 | 0,26 | 0,9 | 0,25 |
| T2 Orifis | 00 | 068-2003 | 1,20 | 0,34 | 1,30 | 0,37 | 1,80 | 0,51 | 1,8 | 0,51 |
| T2 Orifis | 01 | 068-2010 | 2,10 | 0,59 | 2,60 | 0,75 | 3,5 | 1,00 | 3,5 | 0,99 |
| T2 Orifis | 02 | 068-2015 | 2,50 | 0,73 | 3,70 | 1,10 | 4,8 | 1,40 | 4,7 | 1,30 |
| T2 Orifis | 03 | 068-2006 | 4,30 | 1,20 | 6,30 | 1,80 | 8,1 | 2,30 | 8 | 2,30 |
| T2 Orifis | 04 | 068-2007 | 6,40 | 1,80 | 9,90 | 2,80 | 12,4 | 3,50 | 12,10 | 3,50 |
| T2 Orifis | 05 | 068-2008 | 8,40 | 2,30 | 13,00 | 3,70 | 16,5 | 4,70 | 16,70 | 4,80 |
| T2 Orifis | 06 | 068-2009 | 10,10 | 2,90 | 15,50 | 4,40 | 19,7 | 5,60 | 19,70 | 5,60 |

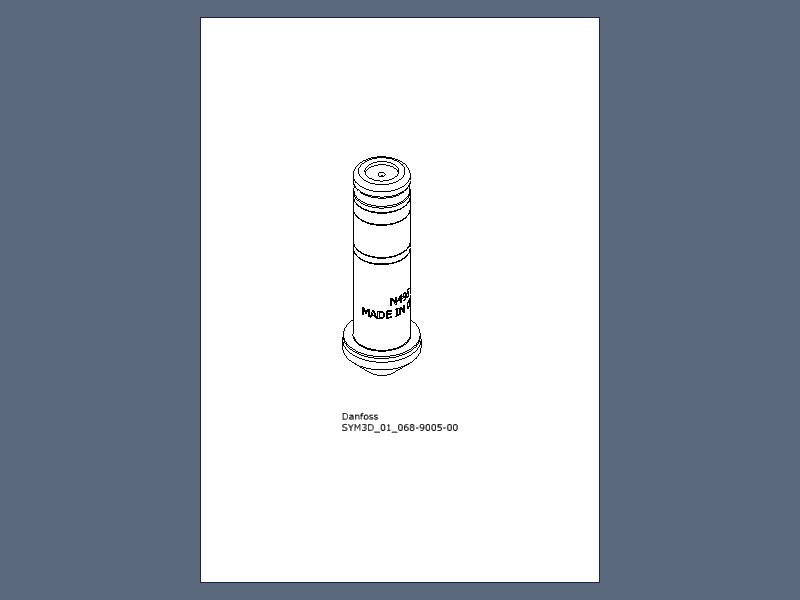

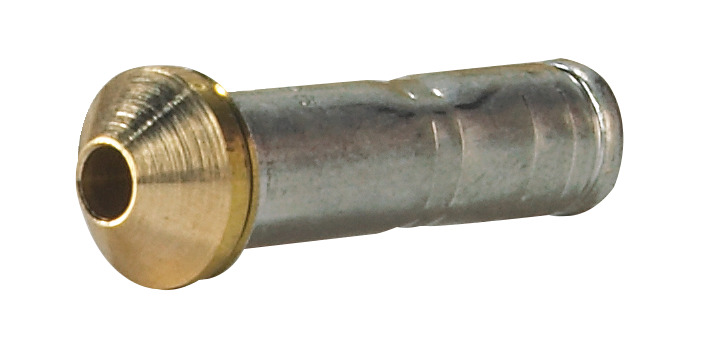

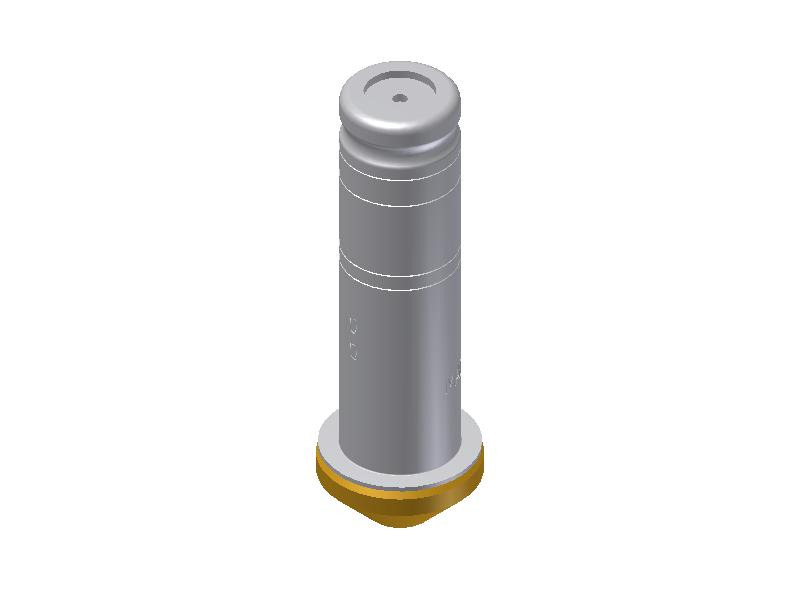

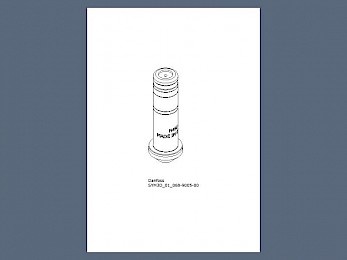

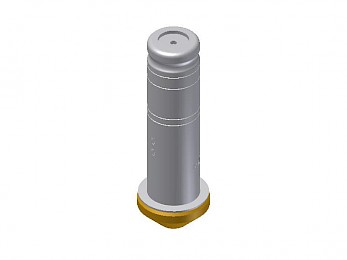

Orifice for expansion valve, ORF, R407A; R134a/R513A; R407F; R23; R455A; R407C; R236fa; R452A; R454C; R404A/R507A; R1234yf; R448A; R22/R407C; R449A
Product details
| Gross weight | 0.018 Kilogram |
| Net weight | 0.01 Kilogram |
| Volume | 0.017 Liter |
| EAN | 5702422103943 |
| Approval | EAC LLC CDC TYSK |
| China RoHS compliance | Out of scope |
| Contain batteries | No |
| Design | SAE flare only |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 1 |
| Orifice size | 0x |
| Packing format | Multi pack |
| Parts Program name | T2/TE2 |
| PED category | Art. 4, par. 3 |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Orifice for expansion valve |
| Quantity per packing format | 25 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Rated cap. R1234yf, N [kW] | 0.49 kW |
| Rated cap. R1234yf, N [TR] | 0.14 TR |
| Rated cap. R134a, Range N [kW] | 0.68 kW |
| Rated cap. R134a, Range N [TR] | 0.19 TR |
| Rated cap. R22, Range B [kW] | 0.87 kW |
| Rated cap. R22, Range B [TR] | 0.25 TR |
| Rated cap. R22, Range N [kW] | 0.9 kW |
| Rated cap. R22, Range N [TR] | 0.25 TR |
| Rated cap. R404A, Range B [kW] | 0.62 kW |
| Rated cap. R404A, Range B [TR] | 0.18 TR |
| Rated cap. R404A, Range N [kW] | 0.64 kW |
| Rated cap. R404A, Range N [TR] | 0.18 TR |
| Rated cap. R407C, Range N [kW] | 0.92 kW |
| Rated cap. R407C, Range N [TR] | 0.26 TR |
| Rated cap. R452A, Range N [kW] | 0.69 kW |
| Rated cap. R452A, Range N [TR] | 0.2 TR |
| Rated cap. R454C, Range N [kW] | 0.77 kW |
| Rated cap. R454C, Range N [TR] | 0.22 TR |
| Rated cap. R455A, Range N [kW] | 0.86 kW |
| Rated cap. R455A, Range N [TR] | 0.24 TR |
| Rated cap. R507, Range B [kW] | 0.62 kW |
| Rated cap. R507, Range B [TR] | 0.18 TR |
| Rated cap. R507, Range N [kW] | 0.64 kW |
| Rated cap. R507, Range N [TR] | 0.18 TR |
| Rated cap. R513A, Range N [kW] | 0.58 kW |
| Rated cap. R513A, Range N [TR] | 0.16 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a/R513A R22/R407C R23 R236fa R404A/R507A R407A R407C R407F R448A R449A R452A R1234yf R454C R455A |
| SCIP dossier no. | c164ed45-f10d-4d73-9eae-355ccb479f4b |
| SCIP dossier product name | T2 /TE2 - Thermostatic Expansion Valve |
| Serviceable | No |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | ORF |
| UA address | UA_2L.png |
| Used for product | T 2 TE 2 |
