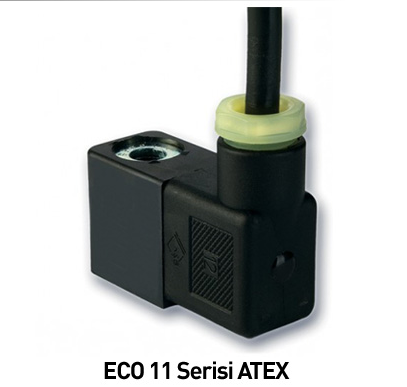

Nass Magnet ECO 11 Series Exproof Coils

General Information:
Nass Magnet ECO 11 Series Exproof coils are electromagnetic coils designed for safe operation in explosive environments. Certified by ATEX and IECEx, they ensure reliable performance and long service life in harsh industrial settings.

Technical Specifications:

• Series: ECO 11

• Body Material: High-temperature resistant plastic coated with epoxy resin

• Protection Class: IP65 – IP67

• Explosion Protection: ATEX, IECEx (Ex mb IIC T4 Gb)

• Voltage Options: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

• Power Consumption: ~6 W (DC) / ~8 VA (AC)

• Connection Type: DIN EN 175301-803 (Form A)

• Operating Temperature: -40°C ~ +50°C

• Applications: Actuating solenoid valves in explosive gas or dust atmospheres

Applications:

• Refineries

• Chemical and petrochemical plants

• Gas filling and distribution stations

• Paint production facilities

• Control systems in food plants with explosive zones

Mounting Position:
Can be mounted in any position. Preferably in well-ventilated areas away from heat sources.
