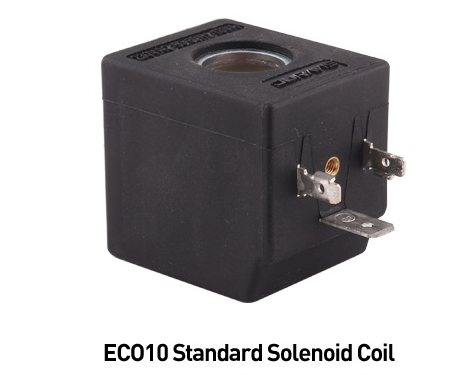

DURAVIS ECO 10 Series Standard Coils

Coil Code	Voltage (V)	Inrush (AC) / Cold (DC)	Holding (AC) / Hot (DC)
ECO10-AC-012	12	30 VA	18 VA
ECO10-AC-024	24	30 VA	18 VA
ECO10-AC-048	48	30 VA	18 VA
ECO10-AC-110	110	30 VA	18 VA
ECO10-AC-230	230	30 VA	18 VA
ECO10-DC-012	12	16 Watt	12 Watt
ECO10-DC-024	24	16 Watt	12 Watt
ECO10-DC-048	48	16 Watt	12 Watt
ECO10-DC-110	110	16 Watt	12 Watt
ECO10-DC-230	230	16 Watt	12 Watt

General Information:
Duravis ECO 10 Series standard coils are robust and long-life electromagnetic coils widely used in industrial solenoid valve applications. With multiple voltage options, they are suitable for integration in diverse systems.

Technical Specifications:

• Series: ECO 10

• Coil Type: Standard – Encapsulated

• Voltage Options: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC

• Power Consumption: ~6-10 W (DC) / ~8-12 VA (AC)

• Protection Class: IP65

• Insulation Class: Class F (155°C)

• Connection Type: DIN 43650-A connector or cable lead

• Operating Temperature: -10°C ~ +55°C

• Application Areas: Solenoid valves, fluid and gas control, automation systems, pneumatic and hydraulic operations

Applications:

• Industrial automation lines

• Fluid/gas control systems

• HVAC equipment

• Hydraulic and pneumatic units

• Process control cabinets

Mounting Position:
Can be mounted horizontally or vertically. Best performance in dry and vibration-free environments.
