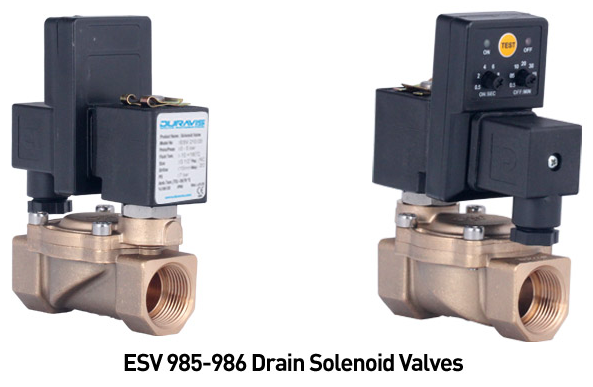

DURAVIS ESV 985-986 Series Solenoid Valves

Ürün Kodu	Fonksiyon	Bağlantı Ölçüsü C	Orifis	Basınç
			mm	Min (bar)	Max (bar)
ESV 985-00-018	N.K	1/8"	1,8	0	16
ESV 985-00-025	N.K	1/8"	2,5	0	12
ESV 985-00-030	N.K	1/8"	3	0	10
ESV 985-00-040	N.K	1/8"	4	0	9
ESV 985-00-045	N.K	1/8"	4,5	0	8
ESV 985-00-050	N.K	1/8"	5	0	7
ESV 985-00-060	N.K	1/8"	6	0	5
ESV 985-01-018	N.K	1/4"	1,8	0	16
ESV 985-01-025	N.K	1/4"	2,5	0	12
ESV 985-01-030	N.K	1/4"	3	0	10
ESV 985-01-040	N.K	1/4"	4	0	9
ESV 985-01-045	N.K	1/4"	4,5	0	8
ESV 985-01-050	N.K	1/4"	5	0	7
ESV 985-01-060	N.K	1/4"	6	0	5
ESV 986-00-018	N.A	1/8"	1,8	0	12
ESV 986-00-025	N.A	1/8"	2,5	0	10
ESV 986-00-030	N.A	1/8"	3	0	6
ESV 986-01-018	N.A	1/4"	1,8	0	12
ESV 986-01-025	N.A	1/4"	2,5	0	10
ESV 986-01-030	N.A	1/4"	3	0	6

General Information:
The Duravis ESV 985-986 series solenoid valves are 2/2-way valves typically used in high-flow applications. Designed for controlling fluids such as air, water, and gas, they offer reliable performance under demanding industrial conditions thanks to their robust body construction.

Technical Specifications:

• Way Type: 2/2-way

• Position: Normally Closed (N.C)

• Body Material: Brass

• Tube Material: Stainless Steel

• Coil Voltages: 220/110/24/12 VAC or 24/12 VDC

• Port Sizes: 1" – 1 1/2"

• Pressure Range: 0.5 – 10 bar

Applications:
Ideal for controlling high-flow fluids such as air, water, and gas.

Mounting Position:
Can be mounted in any position; however, vertical mounting with the coil facing upward is recommended for optimal performance.
