DURAVIS ESV 406 Fuel-Oil Solenoid Valves

Model	Pozisyon	Bağlantı Ölçüsü (G)	Orifis Ölçüsü	Min Basınç AC (bar)	Max Basınç AC (bar)	Min Basınç DC (bar)	Max Basınç DC (bar)	Sızdırmazlık
ESV 406-00-025	N.K.	1/8"	2,5mm	0	30	0	30	VITON

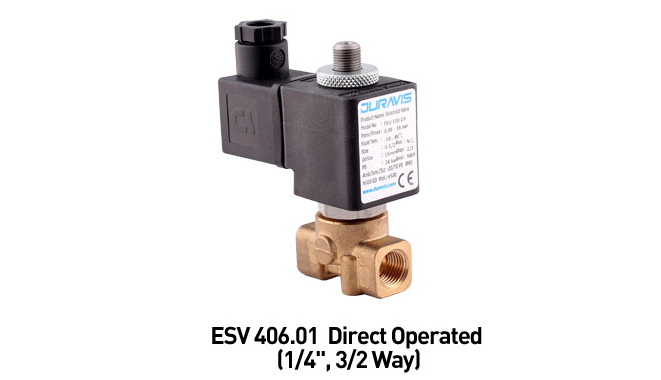

ESV 406-01-025	N.K.	1/4"	2,5mm	0	30	0	30	VITON

General Information:
Duravis ESV 406 Series fuel solenoid valves are designed for controlling diesel, fuel oil, and similar combustible liquids. With a stainless steel body and VITON seals, they ensure safe operation under high temperatures and demanding environments. Their compact design allows for easy integration into various systems.

Technical Specifications:

• Position: Normally Closed (N.C.)

• Body Material: Stainless Steel

• Sealing: VITON

• Connection Size: G1/4", G3/8", G1/2"

• Operating Voltage: 220V AC / 24V DC

• Pressure Range: 0 – 10 bar

• Temperature Range: -10°C ~ +90°C

• Fluids: Diesel, fuel-oil, light oils

• Protection Class: IP65

• Response Time: 0.1 – 0.2 seconds

Applications:

• Fuel systems

• Industrial heating lines

• Boiler systems

• Flammable liquid transport and control

Mounting Position:
Can be installed horizontally or vertically. For horizontal mounting, the coil should face upward.
