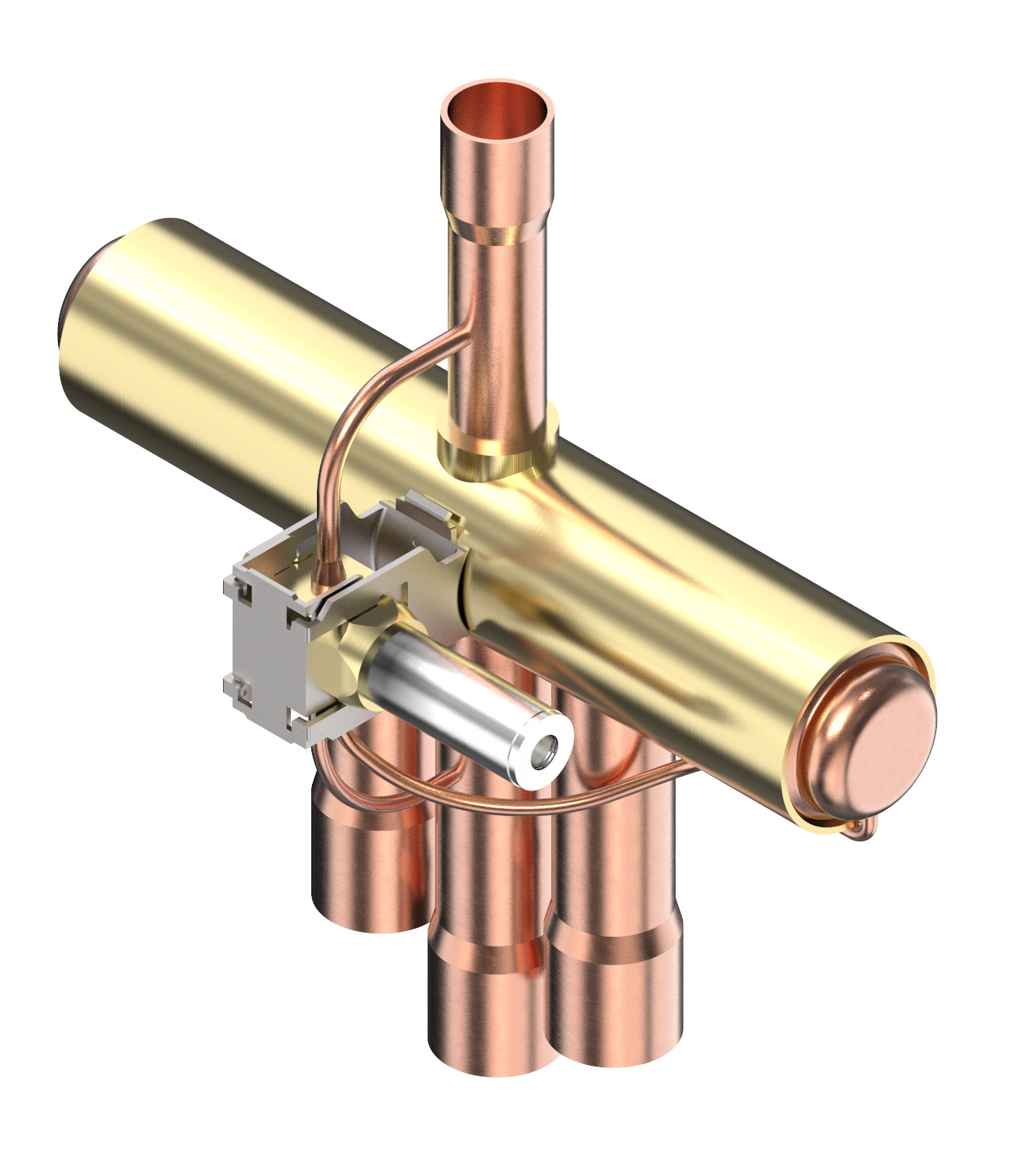

4-way reversing valve, STF-0712G
061L1195
Product details
| Gross weight | 1.628 Kilogram |
| Net weight | 1.627 Kilogram |
| Volume | 9.565 Liter |
| EAN | 5702428273695 |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 27.6 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 23.58 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 38.84 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 33.2 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 35.67 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 30.91 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 50.31 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 43.6 kW |
| China RoHS compliance | Out of scope |
| Coil | No |
| Comments | REPLACE BY 061L1223 |
| Contain batteries | No |
| EU RoHS compliance | Out of scope |
| Packing format | Industrial pack |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R404A R407C R410A |
| Type | STF |
| Type designation | STF-0712G |
