General Description

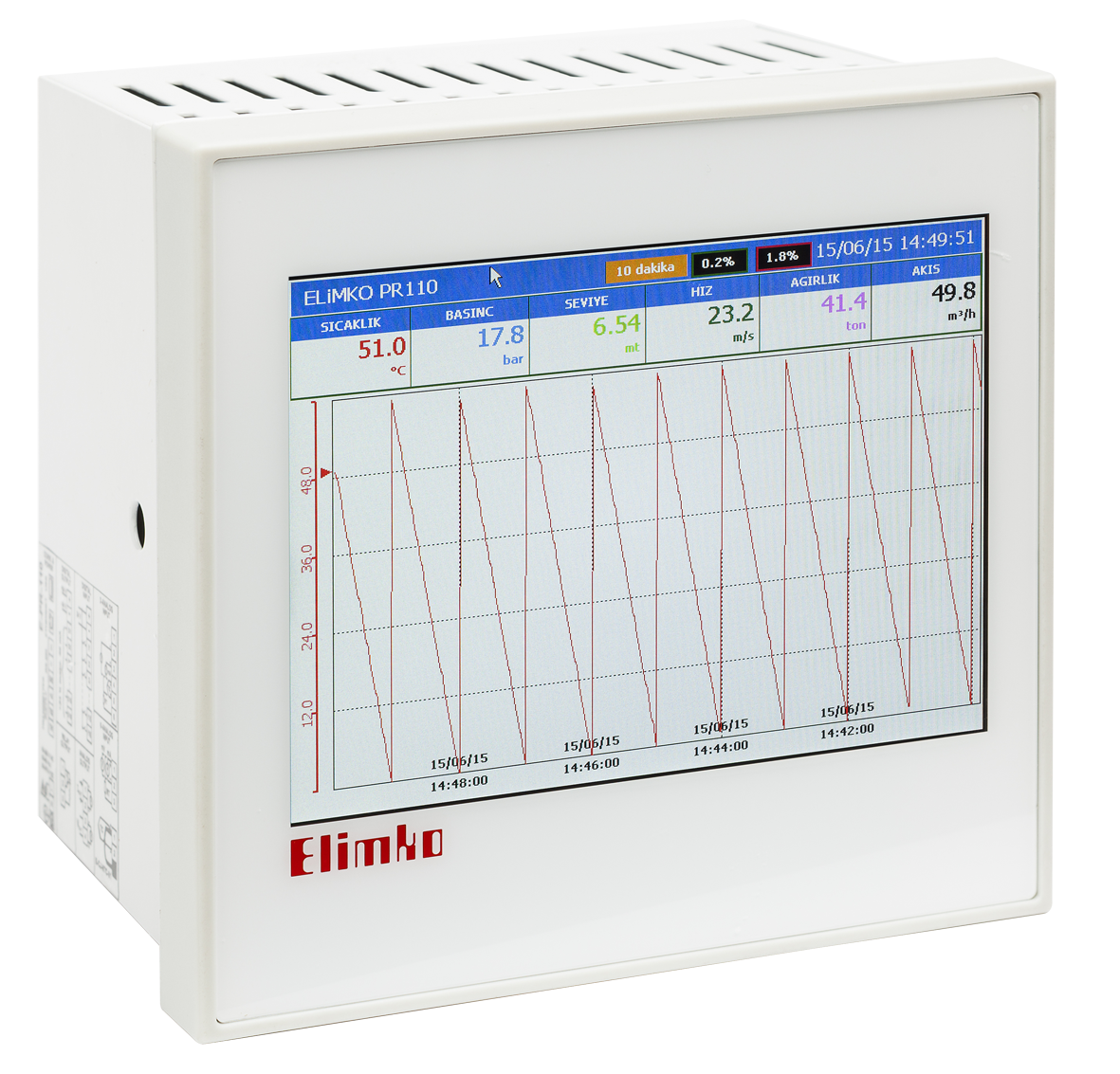

E-PR-110 series devices are paperless recording and control devices designed using microcontrollers. It is used in all areas of the industry with its 3, 6, 9, 12, 15, 18, 21 and 24 channel inputs, 12 Relay outputs, 64 digital inputs/outputs, and easily removable I/O cards that do not require programming, where universal inputs and outputs can be programmed by the user. It is widely used in the digital recording of physical units such as temperature, pressure, level, flow rate, current and voltage in Iron-Steel, Chemistry, Metallurgy, Petro-Chemistry, Refineries, Food, Cement, Ceramics, Glass and other industries. It is a multifunctional recording and control device with RS-485 and Ethernet connection, USB port and high capacity internal data storage feature.
Technicial Specifications
- Accuracy Class: 0.5
- Screen Type: 5.7” TFT screen, 640×480 resolution, 18 bit color, Touch
- Relay Outputs: SPST-NO; 250V AC, 5A
- Number of Relay Outputs: Max. 12 Relay Outputs (Depending on selected configuration)
- Analog to Digital Converter: 16 bit (Isolated for each channel)
- Number of Analog Inputs: Max. 24 Analog Inputs (Depending on selected configuration)
- Input Types: TC (B, E, J,K, L, N, R, S, T, U), RT (Pt-50, Pt-100, Pt-500, Pt-1000, Ni-100, Ni- 200, Ni-500, Ni-1000), 0/20 mA, 4/20 mA, -2000 mV/2000 mV, 0/10 V
- Number of Digital Inputs: Max. 64 Digital Inputs (Depending on selected configuration)
- Number of Digital Outputs: Max. 64 Digital Outputs (Depending on selected configuration)
- Power Consumption: 30 W max.
- Sampling Time: 100 ms (For all channels)
- Password Protection: Adjustable different authorizations (For up to 5 users)
- Protection Class: Front Panel: IP65, Rear Panel: IP20
- Operating Ambient Temperature: -10°C ... 50°C
- Data Storage Memory: 8 GB Micro SD Flash Internal
- Operating Voltage: 85-265V AC; 50-60 Hz / 85-375 V DC
- Communication: 10-100 Mbit Ethernet, RS-485, 1 USB Host
- Weight: 1.6 kg
