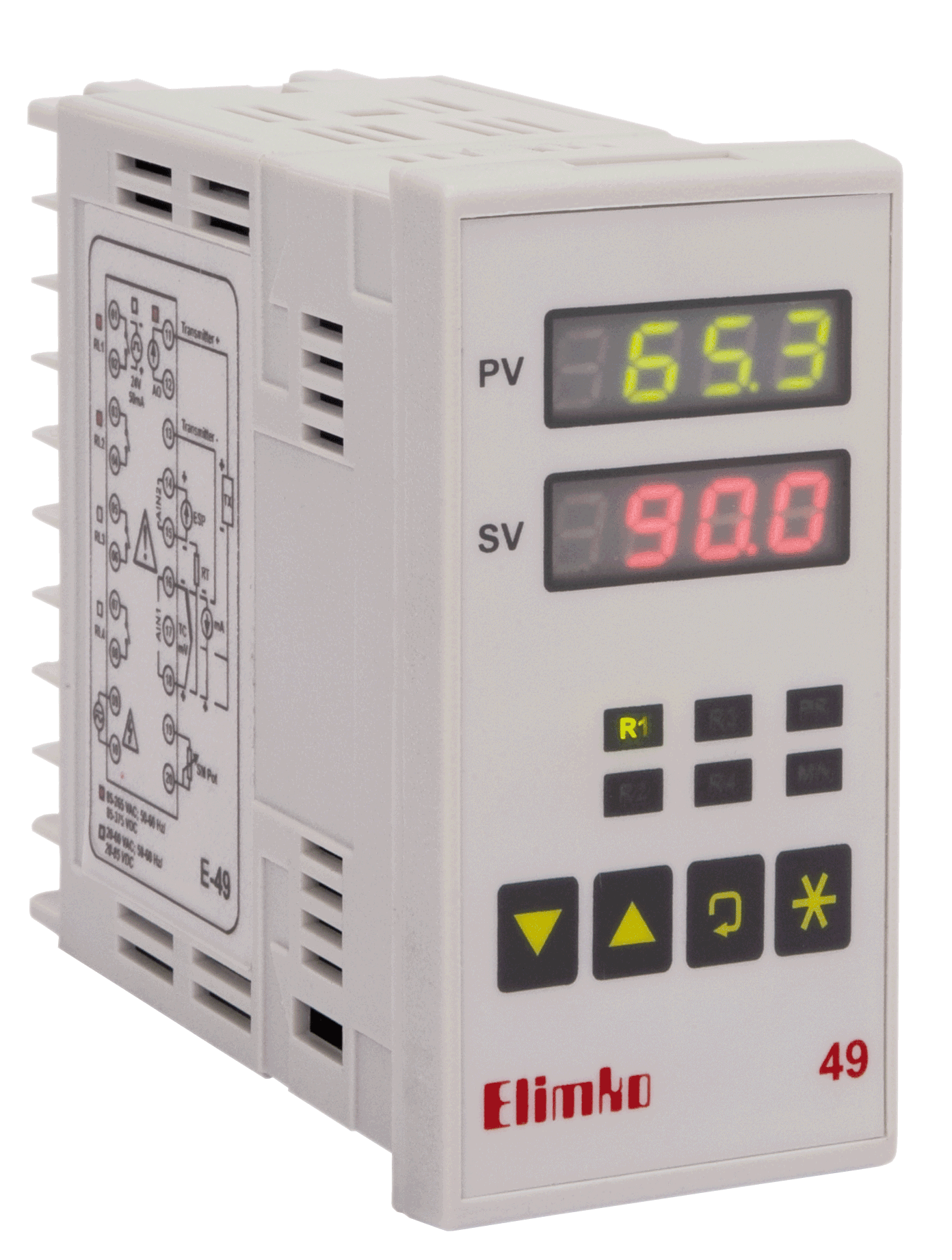

Elimko E-49 Series Digital Indicating Controllers

General Description

E-49 Series controllers are industrial devices in open - closed and PID control forms, 48x96 mm in size, designed using advanced new generation microcontrollers, and comply with IEC / TR 60668 norms. The set value and the measured value can be monitored from -1999 to 9999 on two separate 4-digit displays in the E-49 Series controllers, and universal inputs (T/C, R/T, mV, mA) can be programmed with 16 bit resolution. In every field of industry, measurement and control of temperature, pressure, level, speed, current, voltage, resistance and other physical units, Plastic, Iron-Steel, Chemistry, Metallurgy, Petro-Chemistry, Refineries, Food, Cement, Ceramics, Glass and other industries It is used in branches.

Technicial Specifications

• Accuracy Class: 0.5
• Display Discrimination: 1/9999
• Display: 2x4 Digit LED (10 mm)
• A/S Conversion: 16 bit
• S/A Conversion: 12 bit
• Reading Speed: 2 reads/second
• Input Resistance:
• ≥ 1 MΩ for T/C, mV
• ≤ 51 Ω for mA
• Noise Cancellation: 120 dB at 50 Hz
• Operating Ambient Temperature: -10 ... 55°C
• T/C Ambient Temp. Comp.: 0 ... 50°C
• Operating voltage:
• 85-265V AC / 85-375V DC
• 20-60V AC / 20-85V DC
• Power Consumption: Max. 7W
• Contact Capacity: NO Contact 250 V AC 5 A
• Input Signal: T/C, R/T, mA, mV
• Measuring Element: Thermocouple, Resistance thermometer
• Others: Transmitters and converters with standard and special outputs
• Memory: EEPROM max. 105 writing
• Protection Class:
• Front panel IP66 (NEMA 4X)
• Rear Panel IP20
• Weight: 220g
