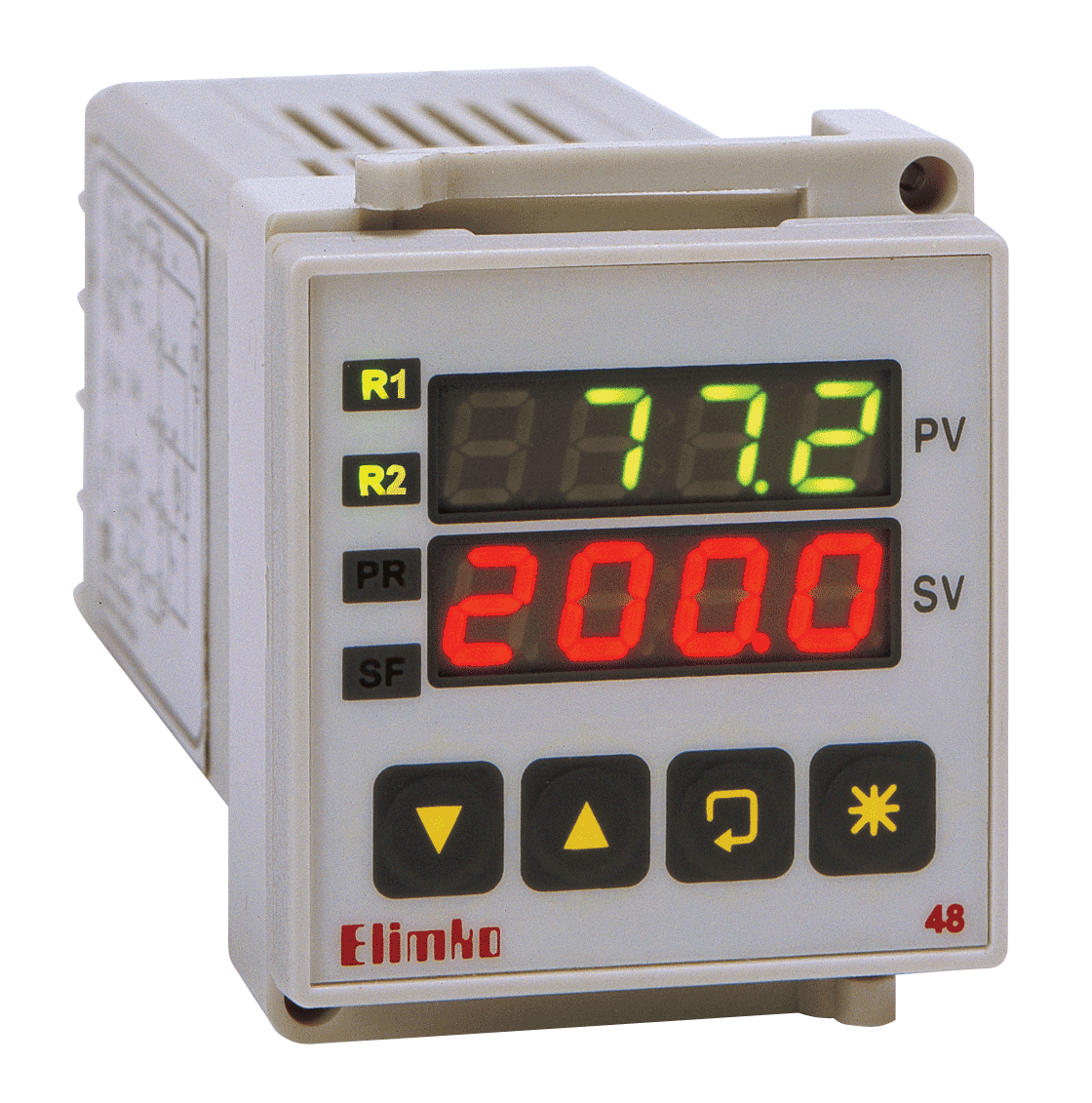

Elimko E-48 Series Digital Indicating Controllers

General Description

E-48 Series controllers; They are industrial devices in open/closed and PID control forms, 48 x 48 mm in size, designed using an advanced new generation microcontroller, and comply with IEC/TR 60668 norms. Set value and measured value can be monitored from -1999 to 9999 on two separate 4-digit displays on E-48 Series controllers, universal inputs (T/C, R/T, mV, mA) with 16 bit resolution programmable. In every field of industry, measurement and control of temperature, pressure, level, speed, current, voltage, resistance and other physical units; It is used in Plastic, Iron and Steel, Chemistry, Metallurgy, Petro-Chemistry, Refineries, Food, Cement, Ceramics, Glass and other industries.

Technicial Specifications

• Accuracy Class 0.5
• Display Discrimination 1/9999
• Display 2x4 Digit LED (7 mm) A/S
• Conversion 16 bit S/A
• Conversion 12 bit
• Reading Speed 2 reads/second
• Input Resistance T/C, mV ≥ 1 MΩ mA, ≤ 51 Ω
• Noise Cancellation 120 dB at 50 Hz
• Operating Ambient Temperature -10 ... 55°C
• T/C Ambient Temp. Comp. 0 ... 50°C
• Operating Voltage 85-265 V AC / 85-375 V DC 20-60 V AC / 20-85 V DC
• Power Consumption Max. 7W
• Contact Capacity NO Contact 250 V AC 5 A
• Input Signal T/C, R/T, mA, mV
• Measuring Element Thermocouple Resistance thermometer Others = Transmitters and converters with standard and special outputs
• Memory EEPROM max. 105 writing
• Protection Class Front panel IP66 (NEMA 4X) Rear Panel IP20
• Weight 155g
