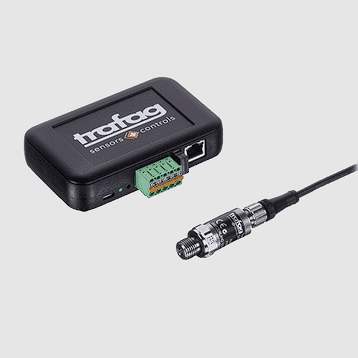

Trafag NAT 8252 Series Pressure Transmitter

TRAFAG NAT2.5A 8252 75 2517 01 0000 0000 19 34 44 61 0...2.5Bar Pressure Transmitter

TRAFAG NAT4.0A 8252 76 2517 01 0000 0000 19 34 44 61 0...4Bar Pressure Transmitter

TRAFAG NAT6.0A 8252 77 2517 01 0000 0000 19 34 44 61 0...6Bar Pressure Transmitter

TRAFAG NAT10.0A 8252 78 2517 01 0000 0000 19 34 44 61 0...10Bar Pressure Transmitter

TRAFAG NAT16.0A 8252 79 2517 01 0000 0000 19 34 44 61 0...16Bar Pressure Transmitter

TRAFAG NAT25.0A 8252 80 2517 01 0000 0000 19 34 44 61 0...25Bar Pressure Transmitter

TRAFAG NAT40.0A 8252 81 2517 01 0000 0000 19 34 44 61 0...40Bar Pressure Transmitter

TRAFAG NAT60.0A 8252 82 2517 01 0000 0000 19 34 44 61 0...60Bar Pressure Transmitter

TRAFAG NAT100.0A 8252 83 2517 01 0000 0000 19 34 44 61 0...100Bar Pressure Transmitter

TRAFAG NAT250.0A 8252 74 2517 01 0000 0000 19 34 44 61 0...250Bar Pressure Transmitter

TRAFAG NAT400.0A 8252 84 2517 01 0000 0000 19 34 44 61 0...400Bar Pressure Transmitter

TRAFAG NAT600.0A 8252 86 2517 01 0000 0000 19 34 44 61 0...600Bar Pressure Transmitter

TRAFAG NAT2.5V 8252 75 2517 01 0000 0000 17 34 44 61 0...2.5Bar Pressure Transmitter

TRAFAG NAT4.0V 8252 76 2517 01 0000 0000 17 34 44 61 0...4Bar Pressure Transmitter

TRAFAG NAT6.0V 8252 77 2517 01 0000 0000 17 34 44 61 0...6Bar Pressure Transmitter

TRAFAG NAT10.0V 8252 78 2517 01 0000 0000 17 34 44 61 0...10Bar Pressure Transmitter

TRAFAG NAT16.0V 8252 79 2517 01 0000 0000 17 34 44 61 0...16Bar Pressure Transmitter

TRAFAG NAT25.0V 8252 80 2517 01 0000 0000 17 34 44 61 0...25Bar Pressure Transmitter

TRAFAG NAT40.0V 8252 81 2517 01 0000 0000 17 34 44 61 0...40Bar Pressure Transmitter

TRAFAG NAT60.0V 8252 82 2517 01 0000 0000 17 34 44 61 0...60Bar Pressure Transmitter

TRAFAG NAT100.0V 8252 83 2517 01 0000 0000 17 34 44 61 0...100Bar Pressure Transmitter

TRAFAG NAT250.0V 8252 74 2517 01 0000 0000 17 34 44 61 0...250Bar Pressure Transmitter

TRAFAG NAT400.0V 8252 84 2517 01 0000 0000 17 34 44 61 0...400Bar Pressure Transmitter

TRAFAG NAT600.0V 8252 86 2517 01 0000 0000 17 34 44 61 0...600Bar Pressure Transmitter

TRAFAG NAT2.5AM 8252 75 2517 32 0000 0000 19 33 44 61 0...2.5Bar Pressure Transmitter

TRAFAG NAT4.0AM 8252 76 2517 32 0000 0000 19 33 44 61 0...4Bar Pressure Transmitter

TRAFAG NAT6.0AM 8252 77 2517 32 0000 0000 19 33 44 61 0...6Bar Pressure Transmitter

TRAFAG NAT10.0AM 8252 78 2517 32 0000 0000 19 33 44 61 0...10Bar Pressure Transmitter

TRAFAG NAT16.0AM 8252 79 2517 32 0000 0000 19 33 44 61 0...16Bar Pressure Transmitter

TRAFAG NAT25.0AM 8252 80 2517 32 0000 0000 19 33 44 61 0...25Bar Pressure Transmitter

TRAFAG NAT40.0AM 8252 81 2517 32 0000 0000 19 33 44 61 0...40Bar Pressure Transmitter

TRAFAG NAT60.0AM 8252 82 2517 32 0000 0000 19 33 44 61 0...60Bar Pressure Transmitter

TRAFAG NAT100.0AM 8252 83 2517 32 0000 0000 19 33 44 61 0...100Bar Pressure Transmitter

TRAFAG NAT160.0AM 8252 85 2517 32 0000 0000 19 33 44 61 0...160Bar Pressure Transmitter

TRAFAG NAT250.0AM 8252 74 2517 32 0000 0000 19 33 44 61 0...250Bar Pressure Transmitter

TRAFAG NAT400.0AM 8252 84 2517 32 0000 0000 19 33 44 61 0...400Bar Pressure Transmitter

TRAFAG NAT600.0AM 8252 86 2517 32 0000 0000 19 33 44 61 0...600Bar Pressure Transmitter

TRAFAG NAT2.5PS 8252 75 2517 32 0000 0000 PS 44 61 ZS 0...2.5Bar Pressure Transmitter

TRAFAG NAT4.0PS 8252 76 2517 32 0000 0000 PS 44 61 ZS 0...4Bar Pressure Transmitter

TRAFAG NAT6.0PS 8252 77 2517 32 0000 0000 PS 44 61 ZS 0...6Bar Pressure Transmitter

TRAFAG NAT10.0PS 8252 78 2517 32 0000 0000 PS 44 61 ZS 0...10Bar

TRAFAG NAT16.0PS 8252 79 2517 32 0000 0000 PS 44 61 ZS 0...16Bar

TRAFAG NAT25.0PS 8252 80 2517 32 0000 0000 PS 44 61 ZS 0...25Bar

TRAFAG NAT40.0PS 8252 81 2517 32 0000 0000 PS 44 61 ZS 0...40Bar

TRAFAG NAT60.0PS 8252 82 2517 32 0000 0000 PS 44 61 ZS 0...60Bar

TRAFAG NAT100.0PS 8252 83 2517 32 0000 0000 PS 44 61 ZS 0...100Bar

TRAFAG NAT160.0PS 8252 85 2517 32 0000 0000 PS 44 61 ZS 0...160Bar

TRAFAG NAT250.0PS 8252 74 2517 32 0000 0000 PS 44 61 ZS 0...250Bar

TRAFAG NAT400.0PS 8252 84 2517 32 0000 0000 PS 44 61 ZS 0...400Bar

TRAFAG NAT600.0PS 8252 86 2517 32 0000 0000 PS 44 61 ZS 0...600Bar

Main features

Smallest design
Completely welded steel sensor system without additional seals
Excellent long-term stability
Optional: 5-fold overpressure resistance

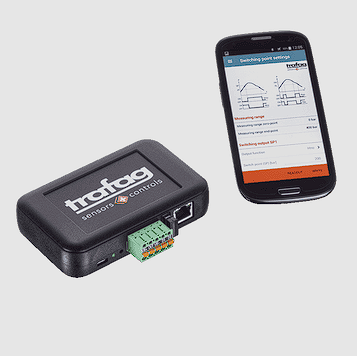

Optional: Switching output 1 or 2 PNP

About

The industrial pressure transmitter NAT 8252 features an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure safety. Optionally, the NAT 8252 is available as a pressure switch with 1 or 2 switching outputs. The robust design and the wide temperature range from -40°C to +125°C qualify the NAT 8252 as the ideal solution for a wide range of demanding applications.

Technical Data


Product code	8252
Name	NAT
Designation	Industrial Pressure Transmitter
Product category	Pressure transmitters
Measuring range	0 ... 2.5 a 0 ... 700 bar 0 ... 30 a 0 ... 10000 psi
Measuring principle	Thin-film-on-steel
Applications	HVAC Hydraulics Machine tools Process technology Refrigeration Water treatment
Accuracy @ 25°C typ.	± 0.5 % FS typ.
Output signal	4 ... 20 mA, 0 ... 5 VDC, 1 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC and more, 0.5 ... 4.5 VDC ratiometric, Switching output: 1 or 2 PNP
Electrical connections	Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Deutsch DT04-3P/4P; Cable
Pressure connections	G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN3866; 9/16"-18UNF m, SAE6 (J1926); R1/4" m, DIN3858; R1/4" m, DIN29
Media temperature	–40°C ... +125°C
Ambient temperature	–40°C ... +125°C (Cable PVC 22: -5°C ... +60°C) (Cable PUR 24: -40°C ... +70°C) (Cable Radox Tenuis 88: -40°C ... +100°C)
