TRAFAG NAH0.2A 8254 68 2317 32 0000 0000 19 33 44 61 0...0.2Bar Pressure Transmitter
TRAFAG NAH0.4A 8254 69 2317 32 0000 0000 19 33 44 61 0...0.4Bar Pressure Transmitter
TRAFAG NAH0.6A 8254 70 2317 32 0000 0000 19 33 44 61 0...0.6Bar Pressure Transmitter
TRAFAG NAH1.0A 8254 71 2317 32 0000 0000 19 33 44 61 0...1.0Bar Pressure Transmitter
TRAFAG NAH1.6A 8254 73 2317 32 0000 0000 19 33 44 61 0...1.6Bar Pressure Transmitter
TRAFAG NAH2.5A 8254 75 2317 32 0000 0000 19 33 44 61 0...2.5Bar Pressure Transmitter
TRAFAG NAH4.0A 8254 76 2317 32 0000 0000 19 33 44 61 0...4Bar Pressure Transmitter
TRAFAG NAH6.0A 8254 77 2317 32 0000 0000 19 33 44 61 0...6Bar Pressure Transmitter
TRAFAG NAH10.0A 8254 78 2317 32 0000 0000 19 33 44 61 0...10Bar Pressure Transmitter
TRAFAG NAH16.0A 8254 79 2317 32 0000 0000 19 33 44 61 0...16Bar Pressure Transmitter
TRAFAG NAH25.0A 8254 80 2317 32 0000 0000 19 33 44 61 0...25Bar Pressure Transmitter
TRAFAG NAH40.0A 8254 81 2317 32 0000 0000 19 33 44 61 0...40Bar Pressure Transmitter
TRAFAG NAH100.0A 8254 83 2317 32 0000 0000 19 33 44 61 0...100Bar Pressure Transmitter
TRAFAG NAH250.0A 8254 74 2317 32 0000 0000 19 33 44 61 0...250Bar Pressure Transmitter
TRAFAG NAH400.0A 8254 84 2317 32 0000 0000 19 33 44 61 0...400Bar Pressure Transmitter
TRAFAG NAH600.0A 8254 86 2317 32 0000 0000 19 33 44 61 0...600Bar Pressure Transmitter
Main features
- Measuring accuracy 0.3 %
- Completely welded steel sensor system without additional seals
- Excellent long-term stability
- Optional: 5-fold overpressure resistance
- Optional: Switching output 1 or 2 PNP

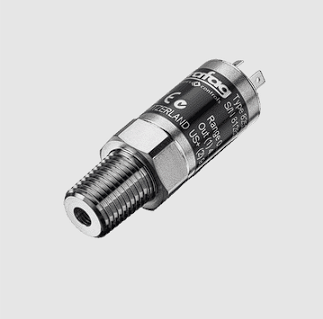

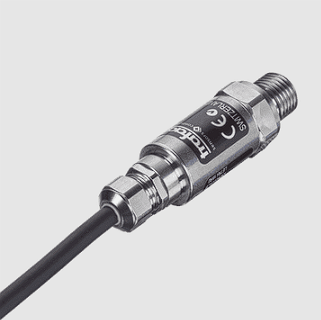

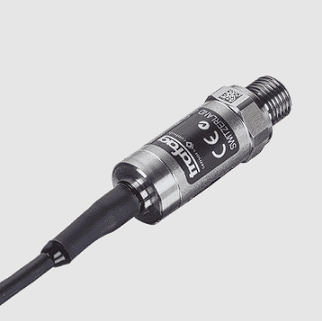

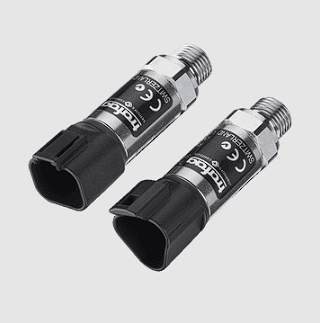

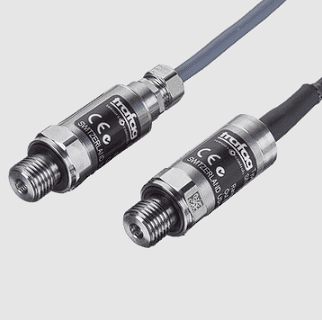

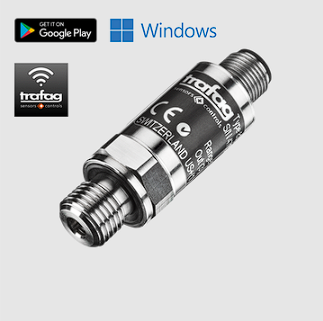

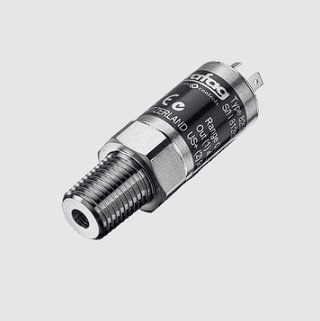

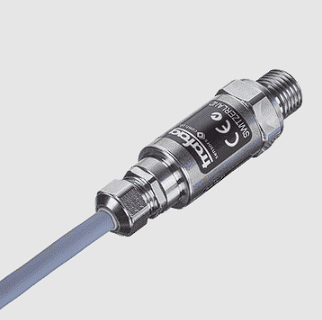

About
The pressure transmitter NAH 8254 with increased accuracy of 0.3% and optional switching outputs has an exceptionally long-term stable thin-film-on-steel sensor cell with triple (optionally 5-fold) overpressure protection. The robust design and the wide temperature range of -40°C to +125°C make the NAH 8254 the ideal solution when pressure needs to be measured accurately and reliably under rough environmental conditions.
Technical Data
| Product code | 8254 |
|---|---|
| Name | NAH |
| Designation | Pressure Transmitter |
| Product category |
Pressure transmitters |
| Measuring range | 0 ... 0.2 a 0 ... 700 bar 0 ... 3 a 0 ... 10000 psi |
| Measuring principle | Thin-film-on-steel |
| Applications |
Hydraulics |
| Accuracy @ 25°C typ. | ± 0.3 % FS typ. |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 1 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC and more, 0.5 ... 4.5 VDC ratiometric, Switching output: 1 or 2 PNP |
| Electrical connections | Industrial standard, contact distance 9.4 mm; M12x1; MIL-C 26482; Deutsch DT04-3P/4P; Cable |
| Pressure connections | G1/4" m; G1/4" m (Manometer); G1/4" m with integrated damping; G1/8" m, DIN3852-E; 1/4"NPT m; 1/4"NPT f; 1/8"NPT m; 7/16"-20UNF f, SAE J512; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF m, DIN3866; 9/16"-18UNF m, SAE6 (J1926); R1/4" m, DIN3858; R1/4" m, DIN29 |
| Media temperature | –40°C ... +125°C |
| Ambient temperature | –40°C ... +125°C (Cable PVC 22: -5°C ... +60°C) (Cable PUR 24: -40°C ... +70°C) (Cable Radox Tenuis 88: -40°C ... +100°C) |
