0216 519 47 90
TRAFAG EPI2.5A 8287 75 2517 05 0000 0000 19 44 58 61 0...2.5Bar Pressure Transmitter
TRAFAG EPI4.0A 8287 76 2517 05 0000 0000 19 44 58 61 0...4Bar Pressure Transmitter
TRAFAG EPI6.0A 8287 77 2517 05 0000 0000 19 44 58 61 0...6Bar Pressure Transmitter
TRAFAG EPI10.0A 8287 78 2517 05 0000 0000 19 44 58 61 0...10Bar Pressure Transmitter
TRAFAG EPI16.0A 8287 79 2517 05 0000 0000 19 44 58 61 0...16Bar Pressure Transmitter
TRAFAG EPI25.0A 8287 80 2517 05 0000 0000 19 44 58 61 0...25Bar Pressure Transmitter
TRAFAG EPI40.0A 8287 81 2517 05 0000 0000 19 44 58 61 0...40Bar Pressure Transmitter
TRAFAG EPI60.0A 8287 82 2517 05 0000 0000 19 44 58 61 0...60Bar Pressure Transmitter
TRAFAG EPI100.0A 8287 83 2517 05 0000 0000 19 44 58 61 0...100Bar Pressure Transmitter
TRAFAG EPI160.0A 8287 85 2517 05 0000 0000 19 44 58 61 0...160Bar Pressure Transmitter
TRAFAG EPI250.0A 8287 74 2517 05 0000 0000 19 44 58 61 0...250Bar Pressure Transmitter
TRAFAG EPI400.0A 8287 84 2517 05 0000 0000 19 44 58 61 0...400Bar Pressure Transmitter
TRAFAG EPI600.0A 8287 86 2517 05 0000 0000 19 44 58 61 0...600Bar Pressure Transmitter
TRAFAG EPI2.5V 8287 75 2517 05 0000 0000 17 44 58 61 0...2.5Bar Pressure Transmitter
TRAFAG EPI4.0V 8287 76 2517 05 0000 0000 17 44 58 61 0...4Bar Pressure Transmitter
TRAFAG EPI6.0V 8287 77 2517 05 0000 0000 17 44 58 61 0...6Bar Pressure Transmitter
TRAFAG EPI10.0V 8287 78 2517 05 0000 0000 17 44 58 61 0...10Bar Pressure Transmitter
TRAFAG EPI16.0V 8287 79 2517 05 0000 0000 17 44 58 61 0...16Bar Pressure Transmitter
TRAFAG EPI25.0V 8287 80 2517 05 0000 0000 17 44 58 61 0...25Bar Pressure Transmitter
TRAFAG EPI40.0V 8287 81 2517 05 0000 0000 17 44 58 61 0...40Bar Pressure Transmitter
TRAFAG EPI60.0V 8287 82 2517 05 0000 0000 17 44 58 61 0...60Bar Pressure Transmitter
TRAFAG EPI100.0V 8287 83 2517 05 0000 0000 17 44 58 61 0...100Bar Pressure Transmitter
TRAFAG EPI160.0V 8287 85 2517 05 0000 0000 17 44 58 61 0...160Bar Pressure Transmitter
TRAFAG EPI250.0V 8287 74 2517 05 0000 0000 17 44 58 61 0...250Bar Pressure Transmitter
TRAFAG EPI400.0V 8287 84 2517 05 0000 0000 17 44 58 61 0...400Bar Pressure Transmitter
TRAFAG EPI600.0V 8287 86 2517 05 0000 0000 17 44 58 61 0...600Bar Pressure Transmitter
Main features
- Excellent long-term stability
- Completely welded steel sensor system without additional seals
- Accuracy classes 0.3%, 0.5%
- Optional: 5-fold overpressure resistance
- Optionally with housing material AISI316L
About

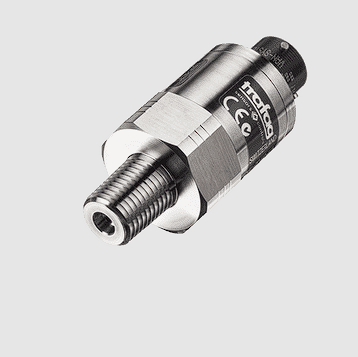

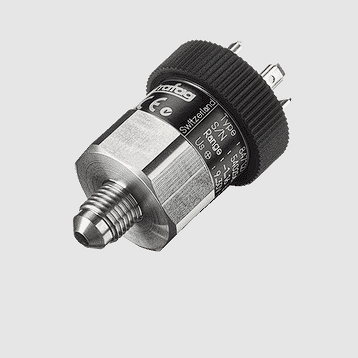

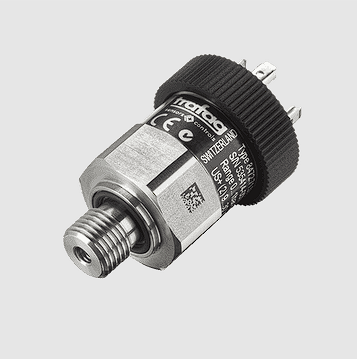

The industrial pressure transmitter EPI 8287 features the extremely robust and stable thin-film-on-steel sensor element from its well-proven predecessor EPI 8297. In combination with the new inhouse developed ASIC TX it offers a wide temperature range up to 125°C and triple overpressure safety which makes it the perfect solution for a wide range of demanding applications.
Technical Data
| Product code | 8287 |
|---|---|
| Name | EPI |
| Designation | Industrial Pressure Transmitter |
| Product category |
Pressure transmitters |
| Measuring range | 0 ... 0.2 a 0 ... 600 bar 0 ... 3 a 0 ... 7500 psi |
| Measuring principle | Thin-film-on-steel |
| Applications |
Hydraulics |
| Accuracy @ 25°C typ. | ± 0.5 % FS typ. ± 0.3 % FS typ. |
| Output signal | 4 ... 20 mA, 0 ... 5 VDC, 0.5 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, 0.5 … 4.5 VDC ratiometric |

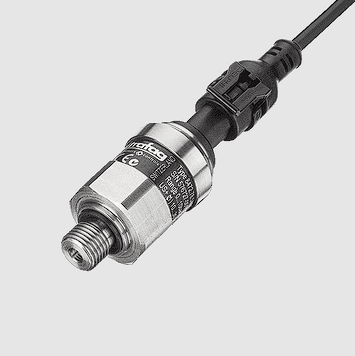

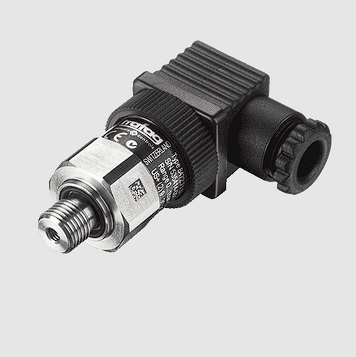

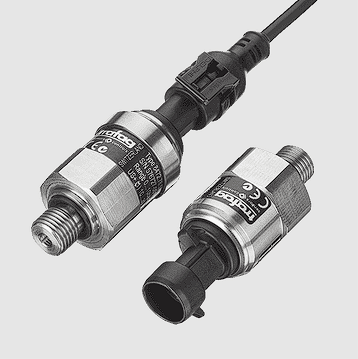

| Electrical connections | EN175301-803-A (DIN43650-A); M12x1; Industrial standard, contact distance 9.4 mm; Packard Metri Pack; MIL-C 26482; DIN72585; Cable |
| Pressure connections | G1/4" f; G1/4" m Seal; G1/4" m with integrated damping; G1/4" m (Manometer) EN 837; G1/2" m (Manometer) EN 837; 1/4"NPT m; 1/4"- 18 NPT f; 1/2"NPT m; R1/4" m, DIN3858; M14x1.5 m, DIN6149-2; 7/16"-20UNF m, DIN3866; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF |
| Media temperature | –40°C ... +125°C |
| Ambient temperature | –40°C ... +125°C Cable PVC: -5°C ... +60°C Cable PUR: -20°C ... +70°C Cable Raychem: -20°C ... +100°C |
