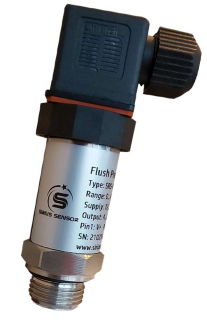

SIRIUS SENSOR SRS-PF Series Flush Diaphragm Pressure Transmitter

SRS-PF series flush diaphragm pressure transmitter; Suitable for use in food, beverage, pharmaceutical and biological engineering fields. The full metal flush mount isolation diaphragm is directly welded with the process connection to ensure precise connection between the process diagram and the measuring diaphragm. Therefore, there is no need for additional seals and ensures that there are no measurement dead zones.

The stainless steel 316L diaphragm separates the measuring medium from the pressure sensor, and the process pressure from the diaphragm to the piezoresistive sensor is transferred statically via the hygienically licensed filling liquid.

• High accuracy and stability

• EMC and reverse polarity protection

• SS316L isolation diaphragm structure

• 26 mm diameter stainless steel body

• Different options between 100 mBar and 25 Bar

• 4…20mA / 0…10VDC etc. different analog output options

• Suitable for process temperatures up to 120°C

• IP65 protection class
