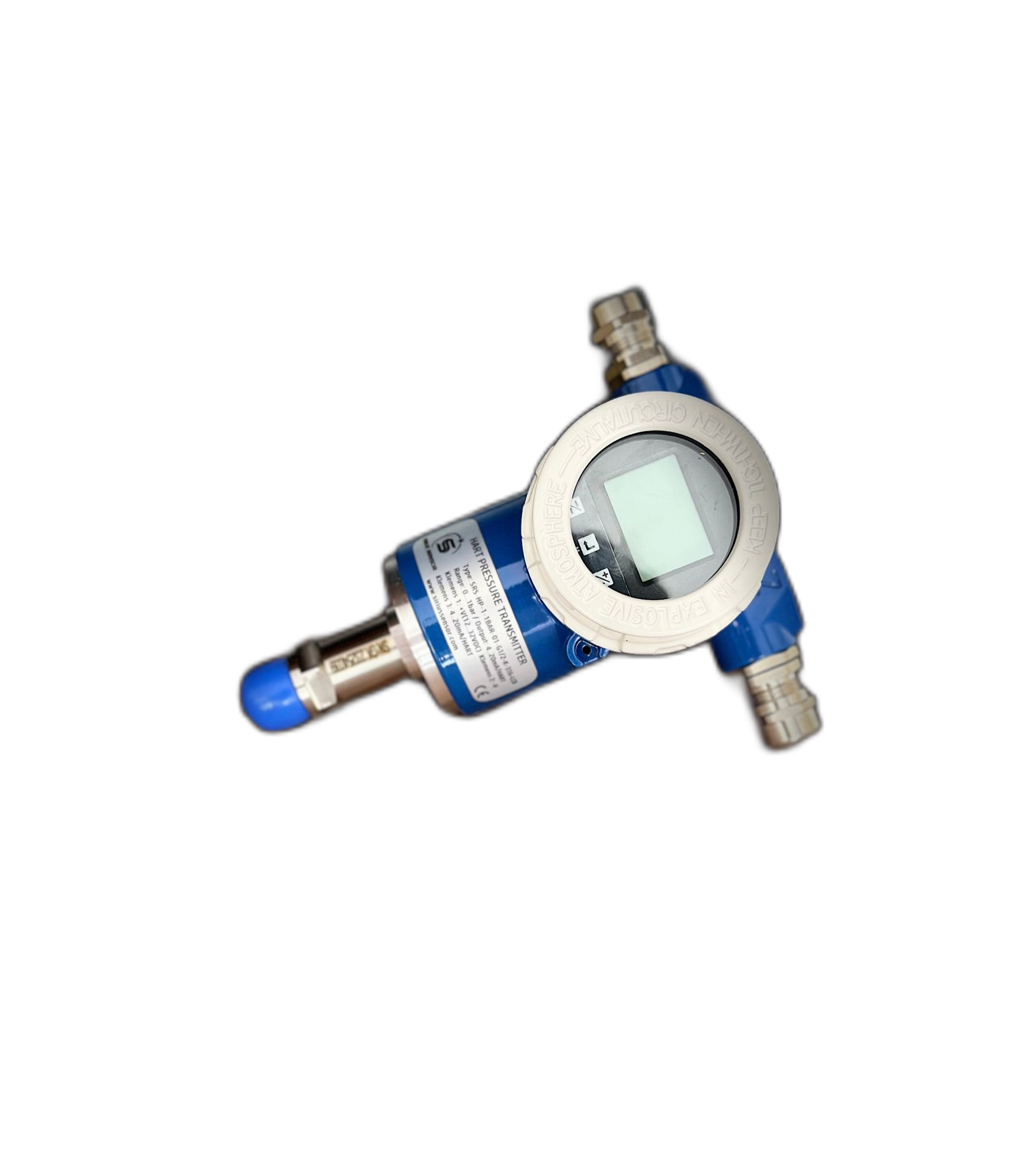

SIRIUS SENSOR SRS-HP Series Smart Hart Pressure Transmitter

SRS-HP Hart pressure transmitter with LCD display is used to convert and display the measured pressure value into the desired measurement unit. Modbus RTU and 4…20mA/HART output options are available.

The product has the features of high accuracy, stability and easy operation.

Parameter configuration and compensation of transmitters can be done easily and on-site with the buttons on the LCD module.

• 100 millibar….600 BAR pressure range

• Easy configuration with LCD module buttons

• 24VDC supply

• 4…20mA/HART or MODBUS RTU output

• Model with 4…20mA/HART output: Backlit LCD displaying 5 bits and 4 decimal places

• Model with MODBUS RTU output: Backlit LCD displaying 6 bits and 5 decimal places

• Many measurement unit options adjustable from the menu

• High accuracy up to ±0.3% FS

• Short circuit and reverse polarity protection

• Aluminum alloy case

• Excellent long-term operation

• IP65 protection class
