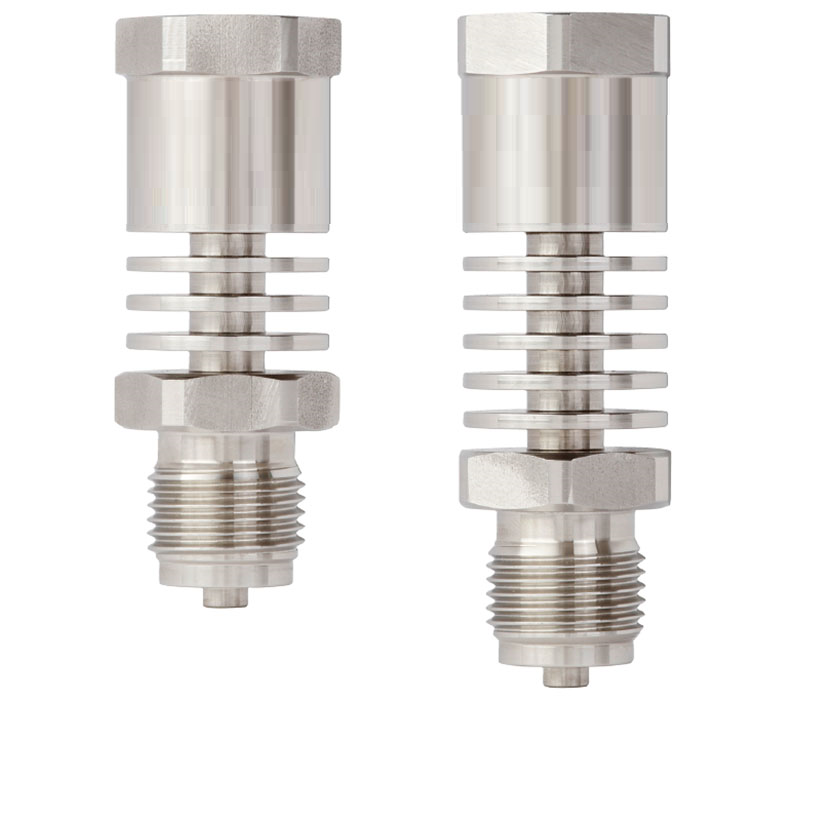

Pressure Transmitter Coolers

PRESSURE SENSOR COOLERS, which we produce as Sirius Sensor, are used in places that require high temperature resistance.

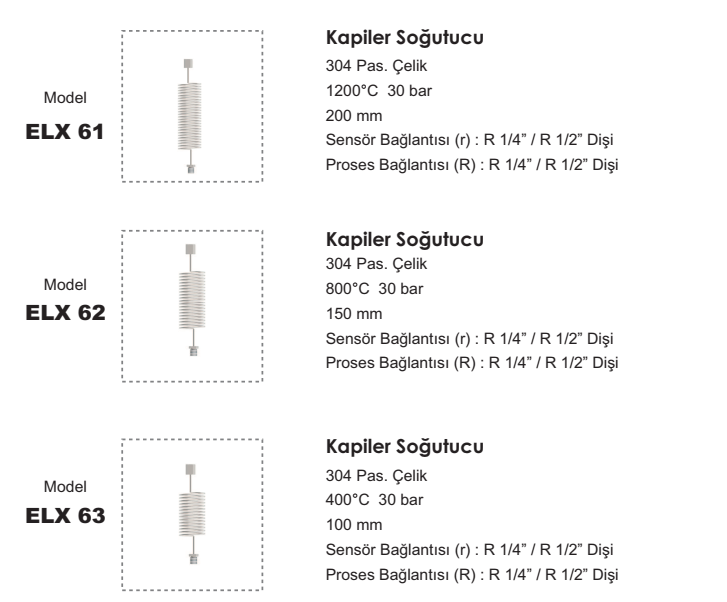

Standard pressure transmitters can operate at +85 degrees. With coolers max. They can work at 250 degrees. Optionally, we can produce solutions up to 600 degrees and 800 degrees as Capillary Coolers.

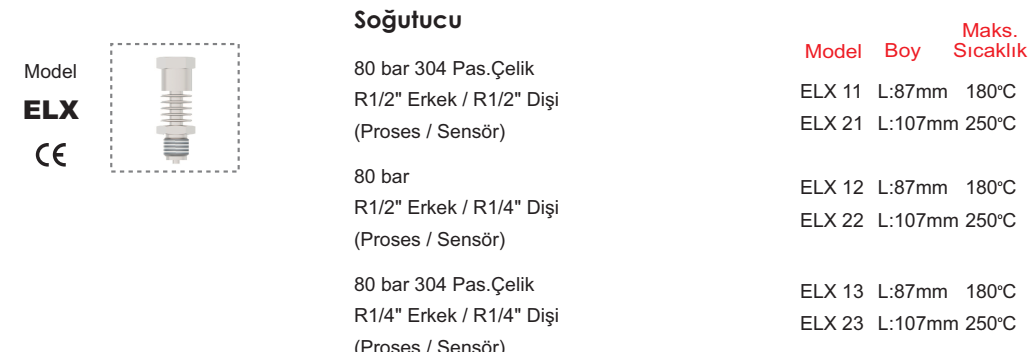

Material: Complete stainless steel

Input: R1 / 4 ″ or R1 / 2 ″

Output: R1 / 4 ″ or R1 / 2 ″

Length: 87mm or 107mm

Temperature: 180 ° C (87mm), 250 ° C (107mm)
