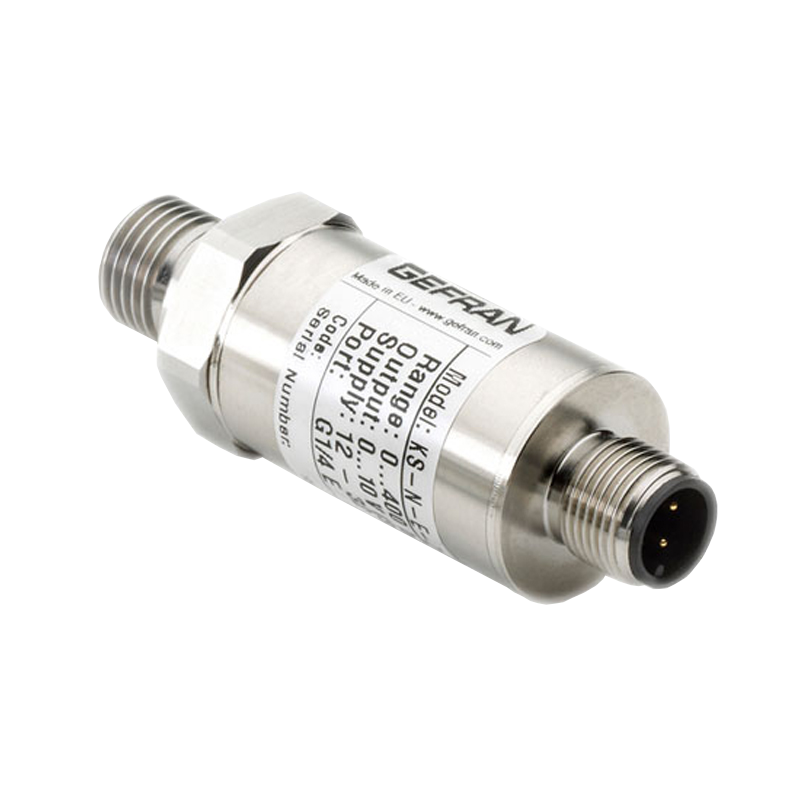

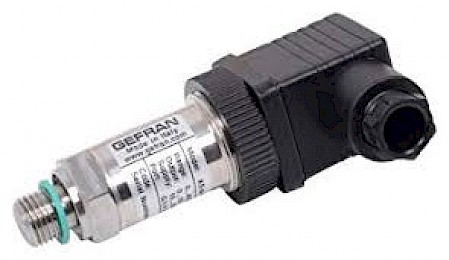

Gefran KS Series Pressure Transmitter

GEFRAN KS

Compact size SIL2 Volt or mA outputs

MAIN FEATURES

• Ranges: from 1 to 1000 bar
• Nominal Output Signal: 0...10Vdc (3 wires / 4...20mA (2 wires)
• Compact size

Technical specifications

KS transmitters are based on film sensing element deposited on stainless steel diaphragm.

Thanks to the latest state of the art SMD electronics and compact all stainless steel construction, these products are extremely robust and reliable, with SIL2 certification supplied as standard. On demand, a cULus certified version is available.

KS transmitters are suitable for all industrial applications, specially on hydraulics (presses, pumps, power pack, fluid power, etc.) with severe conditions usually with high level of shock, vibration, and pressure and temperature peaks.

Description

• Ranges: from 1 to 1000 bar
• Nominal Output Signal: 0…10Vdc (3 wires / 4…20mA (2 wires)
• Compact size
• Wetted parts: Stainless steel
• SIL 2 certified according to IEC/EN 62061:2005
• cULus certification available
