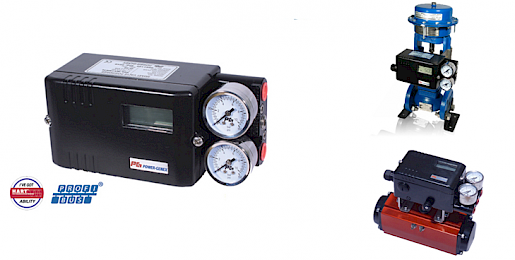

Smart Valve Positioners-SS2

General Information:
The Smart Valve Positioner SS2 is an intelligent device designed for precise and efficient control of rotary or linear actuators. By utilizing electronic technology, it ensures that valves stay in the correct positions. SS2 is especially preferred in process control applications where high accuracy and fast response times are essential. It supports various signal types (0-10V, 4-20mA) and provides energy efficiency.

Technical Specifications:

  • Valve Type: Smart Valve Positioner

  • Body Material: Aluminum alloy

  • Working Pressure: 2 bar to 8 bar

  • Operating Temperature: -20°C to +80°C

  • Control Type: Electronic signal input (0-10V, 4-20mA)

  • Position Indicator: Digital display (optional)

  • Operating Speed: High-speed response (20-30 seconds full cycle)

  • Protection Class: IP65 (dust and water protection)

  • Mounting Type: Surface mount, panel mount

  • Connection Type: NAMUR connection

  • Output Type: Rotary or linear motion

  • Accessories: Integrated control systems, position indicators

  • Certifications: CE, UL (optional)

  • Features: Smart calibration, auto-adjustment, fault detection, low power consumption, long service life

Mounting Position:

  • The Smart Valve Positioner SS2 is typically mounted on top of actuators.

  • Suitable for both horizontal and vertical mounting positions.

  • Manufacturer's guidelines should be followed for proper connection and installation.

Applications:

  • Industrial automation systems

  • Process control systems

  • HVAC and climate control systems

  • Chemical and pharmaceutical industries

  • Water treatment plants

  • Power and energy plants

  • Smart factory systems
