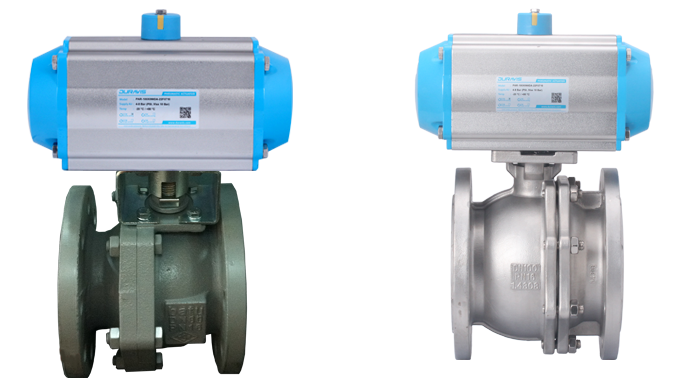

DURAVIS Pneumatic Gray Cast Iron Ball Valve

General Information:
Duravis pneumatic 2-way cast iron valves are cost-effective and durable solutions for industrial fluid control systems. They are commonly used for water, air, gas, and neutral liquids. Operated automatically with a pneumatic actuator.

Technical Specifications:

• Valve Type: 2-way ball valve (Pneumatically operated)

• Body Material: Cast iron (GG25 or equivalent)

• Ball Material: Stainless steel (SS304 or SS316)

• Seat Material: PTFE, RPTFE

• Connection Type: Flanged (DIN PN16, ANSI 150) or threaded

• Size Range: DN15 – DN150

• Working Pressure: Max. 16 bar

• Operating Temperature: -10°C to +180°C (depending on seat)

• Actuator Type: Double-acting or spring return pneumatic actuator

• Optional: Limit switch, solenoid valve, positioner

Mounting Position:

• Can be mounted in any position

• Best performance when actuator is installed upwards

• Suitable for vertical and horizontal pipelines

Applications:

• Water and wastewater systems

• Heating and cooling systems (HVAC)

• Compressed air and gas lines

• Industrial process pipelines

• Firefighting systems

• General fluid control applications
