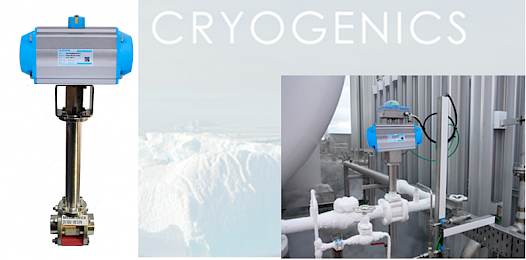

DURAVIS Pneumatic 2 Way Cryogenic Valve

General Information:
Duravis pneumatic 2-way cryogenic valves are designed for applications where liquids and gases are used at low temperatures, typically between -50°C and -196°C. These valves provide safe and efficient flow control in cryogenic systems, including liquefied gases.

Technical Specifications:

• Valve Type: 2-way cryogenic valve (Pneumatically operated)

• Body Material: AISI 304 or AISI 316L stainless steel

• Ball Material: Stainless steel (SS316)

• Seat Material: PTFE, FKM (compatible with low temperatures)

• Connection Type: Flanged (DIN PN16, ANSI 150), threaded, welded

• Size Range: DN15 – DN100

• Working Pressure: Max. 40 bar

• Operating Temperature: -196°C to +100°C

• Actuator Type: Double-acting or spring return pneumatic actuator

• Protection Class: IP67 (actuator protection class)

• Accessories: Limit switch, positioner, solenoid valve (optional)

Mounting Position:

• Suitable for both vertical and horizontal mounting positions

• Recommended to mount with the actuator facing upwards

• Proper installation is crucial for efficient operation in low-temperature environments

Applications:

• Cryogenic liquid systems (liquid nitrogen, oxygen, argon, etc.)

• LNG (Liquefied Natural Gas) transport and storage

• Chemical industry

• Military and space applications

• Low-temperature testing systems
