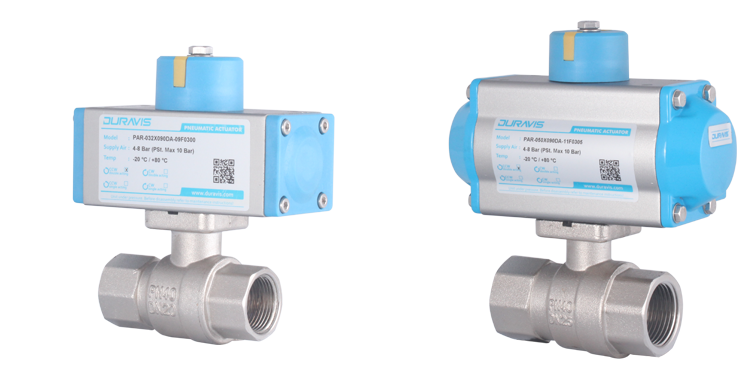

DURAVIS Pneumatic 2 Way Brass Ball Valve

General Information:
Duravis Pneumatic 2-Way Brass Ball Valve is a highly efficient, reliable, and durable valve solution primarily used in liquid and gas control systems. The pneumatic control mechanism allows for quick and precise valve opening and closing. Made of brass material, this valve offers long-lasting performance and durability. It is commonly used in industrial automation systems, HVAC systems, and water treatment plants.

Technical Specifications:

• Type: Pneumatic 2-way ball valve

• Valve Material: Brass

• Connection Type: Threaded, flanged, or threaded connection options

• Operating Pressure: 4-6 bar (pneumatic pressure)

• Operating Temperature: -10°C to +80°C

• Max Pressure: 8 bar

• Valve Structure: 2-way ball valve for liquid and gas flow control

• Available Sizes: DN15 – DN100 (1/2" – 4") (varies by model)

• Enclosure Protection: IP65

• Flow Capacity: Varies based on model and valve type

• Operating Type: ON/OFF

• Mounting Type: Vertical or horizontal

• Applications: Industrial automation, HVAC systems, water treatment, gas control systems

Applications:
Used in industrial automation, gas and liquid flow management, HVAC systems, water treatment plants, and various other industrial applications.

Mounting Position:
Can be installed in either vertical or horizontal positions. Proper air connections should be provided for installation.
