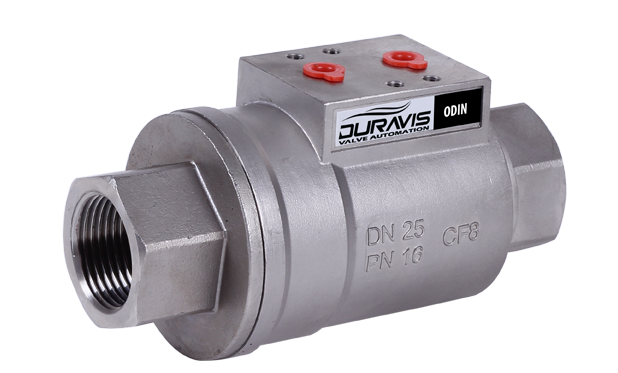

DURAVIS ODIN 200 Series Pneumatic Axial Valves

Model	Ölçü	Pozisyon	Kontrol	Bağlantı	Sızdırmazlık
ODIN 200-10G-2V	DN 10	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-15G-2V	DN 15	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-20G-2V	DN 20	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-25G-2V	DN 25	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-32G-2V	DN 32	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-40G-2V	DN 40	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-50G-2V	DN 50	Normalde Kapalı	Tek Etkili	BSPP Dişi Dişli	VITON
ODIN 200-10G-3V	DN 10	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON
ODIN 200-15G-3V	DN 15	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON
ODIN 200-20G-3V	DN 20	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON
ODIN 200-25G-3V	DN 25	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON
ODIN 200-32G-3V	DN 32	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON
ODIN 200-40G-3V	DN 40	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON
ODIN 200-50G-3V	DN 50	Normalde Kapalı	Çift Etkili	BSPP Dişi Dişli	VITON

General Information:
Duravis ODIN 200 Series pneumatic axial valves are high-performance valves used in industrial applications. Axial valves are critical components in various industrial processes and automation systems, controlled directly by air pressure. These valves are primarily designed for directing the flow of liquids and gases, providing high precision and durability. They are user-friendly in terms of installation and maintenance, offering efficient and cost-effective operation.

Technical Specifications:

• Type: Pneumatic axial valve

• Operating Pressure: 4-6 bar (pneumatic pressure)

• Body Material: Aluminum, steel, or stainless steel (depending on model)

• Connection Type: Flanged, threaded, or threaded connection options

• Control System: Pneumatic, ON/OFF

• Operating Temperature: -20°C to +80°C

• Max Pressure: 8 bar

• Valve Type: Axial flow directing valve

• Flow Capacity: Varies based on model and valve type

• Available Sizes: DN50 – DN300 (2" – 12") (varies by model)

• Mounting Type: Vertical or horizontal

• Enclosure Protection: IP67 (depending on model and application)

• Material Options: Stainless steel, aluminum, PVC, steel, etc.

• Applications: Industrial automation, water treatment, gas control systems, HVAC systems

Applications:
Used in industrial automation, liquid and gas flow management, HVAC systems, water treatment, gas control systems, and general industrial applications.

Mounting Position:
Can be installed in either vertical or horizontal positions. Proper air connections and installation requirements should be considered.
