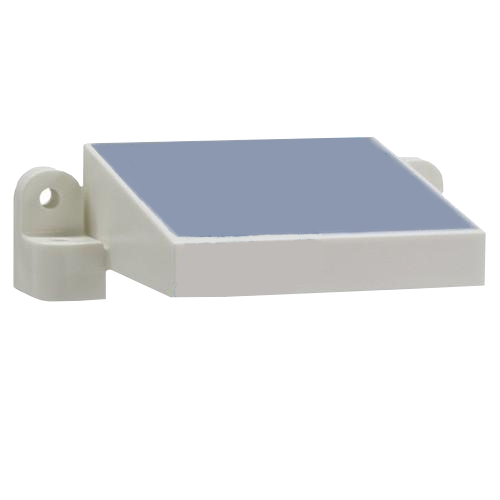

RD-L-000 Rain Dedector

Specifications

The sensor surface detects sticky particles, and the contact closes or opens due to wetting.

Sensor Surface: 18 cm²
Measuring Principle: ceramic, capacitive sensor
Switch-on-delay: <0.5 s
Switch-off-delay: approx. 15 s
Signal Output: rain / no rain
Supply Voltage: 11 ... 28 VAC
Operating Temperature: -30 ... +60 ° C
Material: Polycarbonat, Ceramic, stainless steel
Protection Class: IP66
Dimensions: 77 x 49 x 37,5 mm
Weight: 160 g
