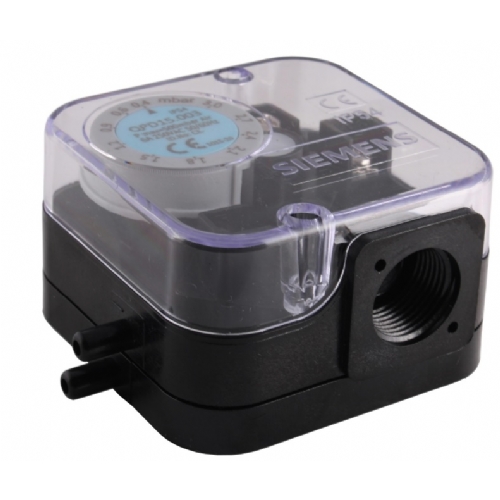

SIEMENS QPD15.050 2.5-50MBAR PRESSOSTAT

General Description:
The SIEMENS QPD15.050 is an adjustable pressure switch designed to safely monitor low to medium gas pressure in burner, boiler, and industrial gas systems.

Technical Specifications:

• Adjustable Pressure Range: 2.5 – 50 mbar

• Max Operating Pressure: 150 mbar

• Electrical Rating: 250 V AC, 50/60 Hz, 6 A (resistive load)

• Contact Type: SPDT (Single-pole double-throw)

• Protection Rating: IP54

• Ambient Temperature Range: -15 °C ... +80 °C

• Connection Type: Ø6 mm hose fitting

• Hysteresis: Approx. 0.6 mbar

• Recommended Mounting Position: Vertical

Applications:

• Gas pressure control in combustion systems

• Burners and boilers

• Industrial gas safety circuits

• Heating and drying systems

Advantages:

• Wide adjustment range

• Precise and reliable operation

• Simple installation

• Complies with CE and EN safety standards
