Santest GYSE-R-PF Series High Performance Profile Type Non-Contact Linear Scale

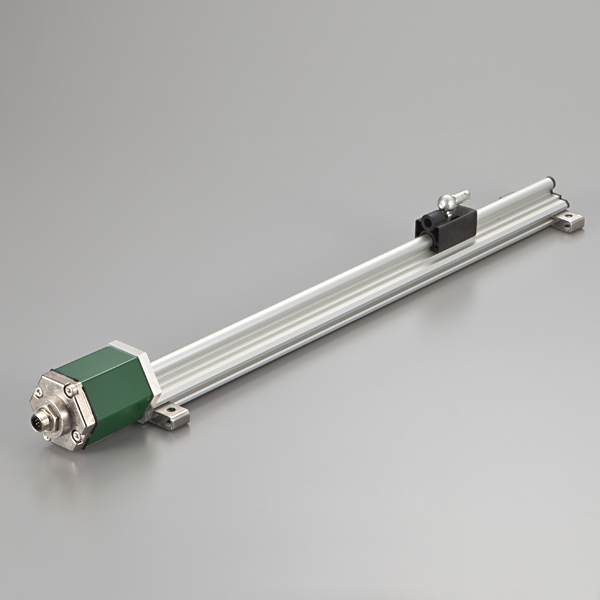

Santest GYSE-R-PF Probe

High accuracy type (detachable probe element)

This is the linear profile version of GYSE-R. Between probe and controller, RS-422 differential line driver transmission, providing robustness against electrical noise, is used. In combination with a digital output controller, Min.1μm resolution is possible. The inside probe element can be detached from the outer housing. And by auto calibration function, a difference in the output when you change the probe is adjusted automatically.

Specifications

ACCURACY
Non-linearity	≦±0.025%FS TYP
Resolution	(analogue）16bit（with GYHC） (digital）Min.1μm（with GYDC-05）
Repeatability	≦±0.001%FS
Temp. drift	≦±20ppmFS/℃
ENVIRONMENT
Operating temp.	-20℃～+75℃
Storage temp.	-40℃～+75℃
Vibration	15G (20～100Hz）
Shock	100G (2msec）
IP grade	IP65
Cable	Std 1.5m（Option Max.200m）

• The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
• The specification of stroke less than 300mm is equal that of stroke 300mm.
