Santest GYRHP-MR6 Series High Performance Non-Contact Linear Scale

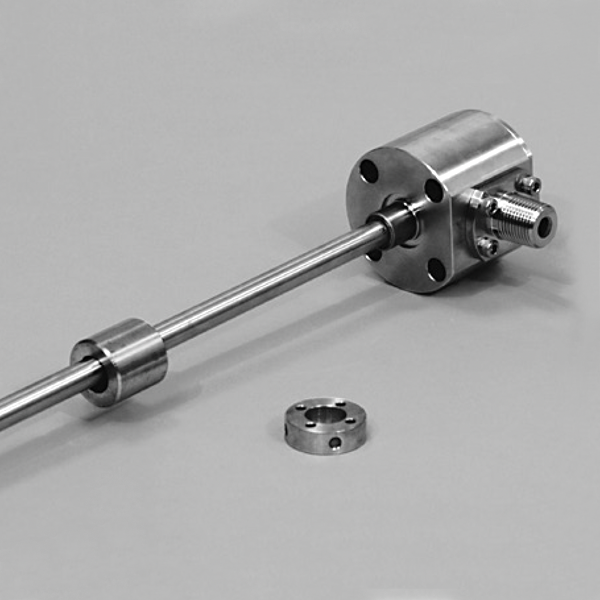

Santest GYRHP-MR6 Probe

Pressure resistance rod: 70MPa, heavy duty type (with external controller)

GYRHP-MR6, which is different from conventional GY series, achieved pressure-resistant 70MPa (rod) by redesign in head and rod part. Standard of protection grade is IP67, but you can select water-proof type (IP68) or cable conduit type (IP69K) by option. Between probe and controller, RS-422 differential line driver transmission, providing robustness against electrical noise, is used. In combination with a digital output controller, Min. 1μm resolution is possible. And by auto calibration function, difference in the output when you exchange the probe is adjusted automatically.

Specifications

ACCURACY
Non-linearity	≦±0.025%FS TYP
Resolution	(analogue）16bit（with GYHC） (digital）Min.1μm（with GYDC-05）
Repeatability	≦±0.01%FS
Temp. drift	≦±20ppmFS/℃
ENVIRONMENT
Max. Pressure	70MPa（probe rod）
Operating temp.	-20℃～+80℃
Storage temp.	-40℃～+80℃
Vibration	20G（10～100Hz）
Shock	100G（2msec） / 800G（SRT option）
IP grade	IP67（STD), IP68 / IP69K（option）

• The above mentioned accuracy applies to sensors with an effective stroke of 300mm or more.
• The specification of stroke less than 300mm is equal that of stroke 300mm.
