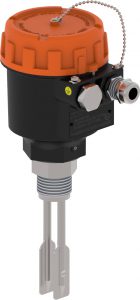

SRS 100 Series Fork Type Level Switch

SRS 100 Fork Type Level Switch

General Description

ELT vibrating level switch is one of the other types of vibrating level switches. Unlike other sensors, it is not affected by materials adhering to the probe or impacts. There is no jamming problem and it has high precision.

Technicial Specifications

In our ELT 100 (Fork) series, the Fork Material is 316 Stainless Steel.
Wet Parts are 316 Stainless Steel.
Housing Material is Aluminium.
Connection R 1" (Std.) Male Thread Opt. Flanged
Working Pressure Max. It is 40 bars.
Operating Temperature (-) 20°C…(+) 150°C (Std.) Opt. It is 200°C.
Ambient Temperature is (-) 20°C…(+) 80°C.
Ambient Humidity 95% RH
