Ayvaz C4 Level Switch

C-4 Mechanical Level Gauge

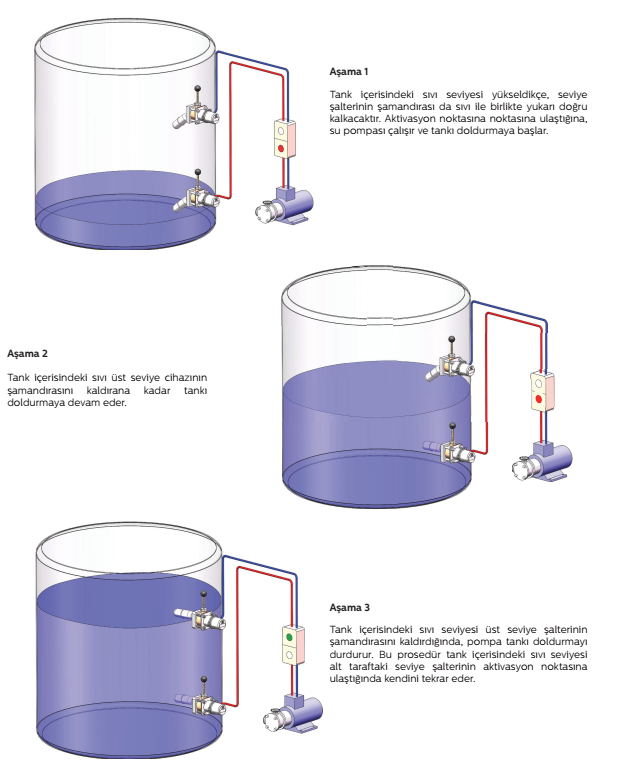

Changes in liquid level move the float up and down. Thus, the micro switch in the box provides contact according to the state of the float. It ensures the efficient and safe operation of the system by transmitting it to devices such as normally open or closed type electrical connections, such as pumps, solenoid valves, alarm devices and signal lamps.

Setup:
The C-4 level switch should be mounted horizontally on the tank wall. They can also be mounted with a tail flange for easy removal and installation. For high and low level contacts, level switches should be mounted in the direction of the arrow indicated on the flange.

Scope of application:

Pressure / Non-Pressure Vessels
Fresh Water Tanks
Waste Water Tanks
Fuel Tanks
Steam Generators
Hydrofoils
Water Treatment Systems
Steam Boilers

Advantages

Magnetic Study
Wide Adjustment Range
Sealing
Long lasting
Various Applications

Accessories: Test lever, Adjusting lever

Please contact our customer representative for your high temperature and pressure requests.

Technical Specifications

Float: AISI 316L Stainless Steel
Flange Material: AISI 304
(Opt. PN16 Carbon Steel)
Cover: Aluminum
Protection Class: IP66
Max. Working Temperature: 150 ºC
Max. Working Pressure: 16 bar
Micro Switch: 16 A
Max. Switch Voltage: 480 VAC / DC
Contact Type: NO / NC
Control Range: 20-180 mm
(More than one C-4 should be used for limits above this range)
