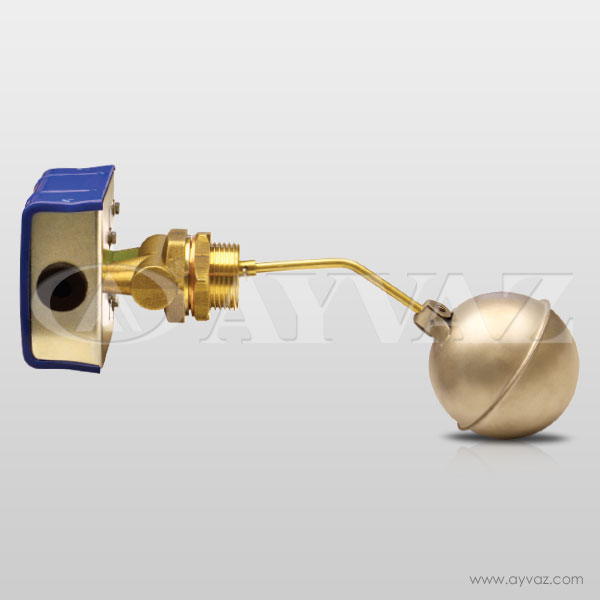

Ayvaz C2 Level Switch

C-2 Mechanical Level Gauge

Changes in liquid level move the float up and down. Thus, two micro switches in the box warn separately according to the state of the float. Microswitches that can make electrical connections in normally open or closed types ensure efficient and safe operation of the system by transmitting these movements to devices such as pumps, solenoid valves, alarm devices and signal lamps.

Setup:
The C-2 level switch should be mounted horizontally on the tank wall.
The device should be mounted at the desired height of the tank in order to get high level contact, and at the lower parts of the tank for low level contact.
Each device provides two contacts. This allows the user to both get low level alarm and start the pump with a single device. If desired, pump start / stop can be done with a single device.

Scope of application:

Pressure / Non-Pressure Vessels
Fresh Water Tanks
Waste Water Tanks
Fuel Tanks
Steam Generators
Hydrofoils
Water Treatment Systems
Small Steam Boilers
Hot Water Boilers

Advantages

Mechanical Work
Wide Adjustment Range
Sealing
Long lasting
Various Applications

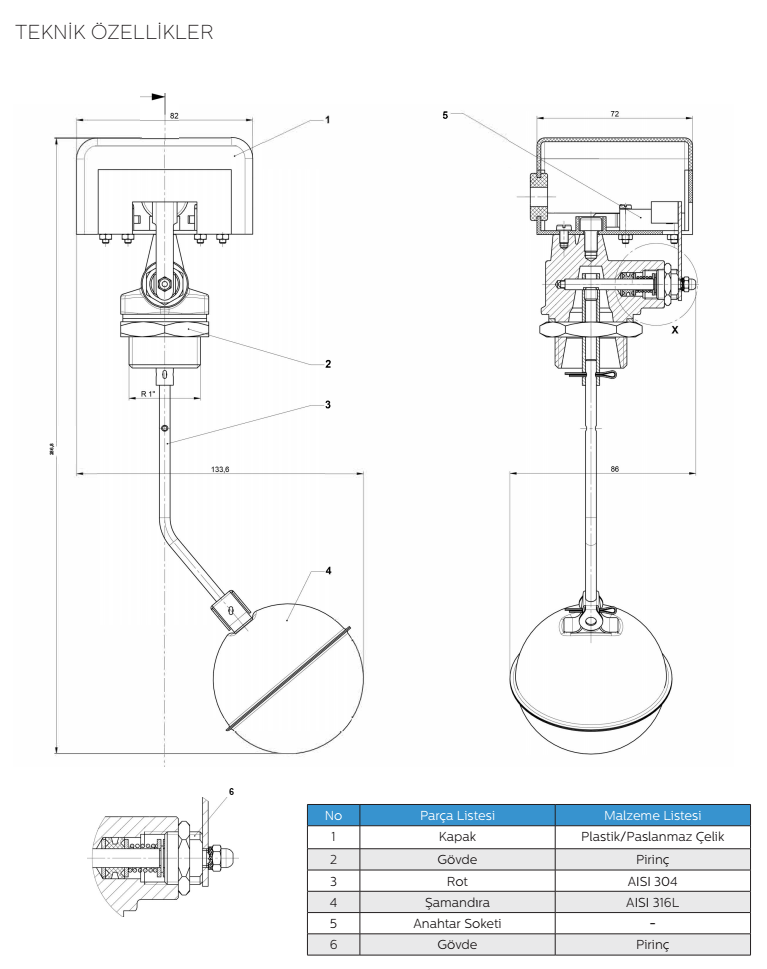

Technical Specifications

Float: AISI 316L Stainless Steel
Cover: ABS Plastic / Stainless Steel
Connection: 3/4 ”- 1” BSP
Body: Brass
Micro Switch: 16A
Max. Working Temperature: 125 ºC
Max. Working Pressure: 6 bar
Contact Type: Normal Open / Normal Closed
Contact Range: 15-90 mm
Please contact our customer representative for your high temperature and pressure requests.
