General Description

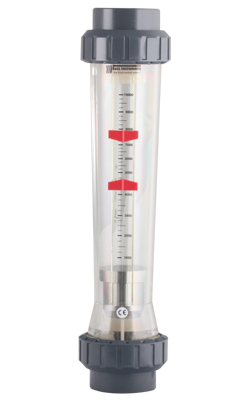

Variable Area Float Flowmeters are low-cost flowmeters designed to measure the instantaneous flow rate of water or fluids with similar properties to water and gases such as air or nitrogen. It is light and durable with its full plastic design. FCIV series Variable Area Float Flowmeters with bonded or threaded connections can be connected to the installation in a very short time. HCl or NaOH scales are available especially for purification systems. There is no guide rod inside which the buoy travels. This prevents possible snags or blockages. In plastic products, the resisting temperature and the resisting pressure are inversely proportional.
Technicial Specifications
- Measuring Range-Water1.5 - 15 l/h. ... 10 - 50 l/h
- Measuring Range-Air25 - 250 Nl/h. ... 50 - 500 Nm3/h.
- Connection DimensionG Threaded or Bonding 3/8"...2 1/2"
- Body - ConnectionsTrogamid - PVCU
- Temperature -10...60°C max. (Opt.100°C)
- Pressure10 Bar max.
- Sensitivity<±3% T.S.
- ApplicationOptional Contact or 4-20 mA
Features
- Design Without Guide Rod
- Special Scale for HCl, NaOH
- Optional PSU or PVC Housing
- Large Scale for Easy Reading
- Optional Contact or 4-20 mA Output
