General Description

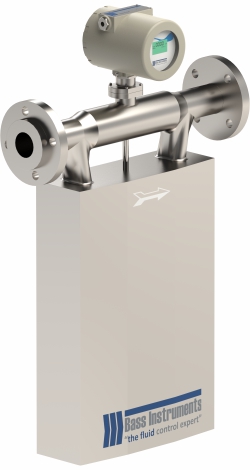

U series Mass Flowmeters are precision measurement products that measure the mass, density and temperature of the fluid at the same time, without affecting the density of liquid or gas phase fluids. Measuring range up to 0-0.2...0-500 t/h or 0-1...0-500 t/h is available. Standard 4-20 mA, Pulse output is available. Wet parts are produced in AISI316 as standard. You can see the instantaneous flow and total flow value with the numerical indicator on it. Coriolis Mass Flowmeter The power supply of our product, which has a sensitivity of 0.2%, can be selected as 24 VDC. Process connection DN15...DN200 working pressure is maximum 40 Bar. Ex-proof options are available for environments with risk of explosion.
Technicial Specifications
- Measuring Range-Liquid0-1...0-500 t/h
- Measuring Range-Gas0-0.2...0-500 t/h
- Connection SizeDN15...DN200
- Wet PartsAISI316
- Temperature -200...200°C (Opt; +350°C)
- Pressure40 Bar max.
- Accuracy<±0.1% or <±0.2%
- ProtectionIP67 (Ops; Exproof)
- Supply24 VDC
- Output4...20mA (Opt; Pulse)
- Display(Ops; LCD)
- CommunicationRS-485, MODBUS-RTU (Ops; HART)
- Application: Gases and Liquids with Variable Density
Features
- Wide Measuring Ability
- Ideal for Liquid or Gas Measurement
- Simultaneous Flow, Density and Temperature Measurement
- Optional Thermal Jacket Option
