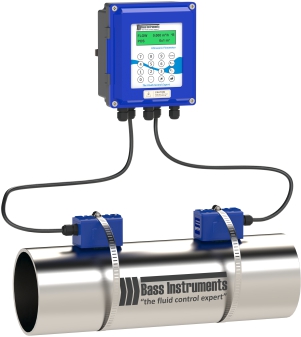

Transit-Time Ultrasonic Flowmeter

General Description

Transit Time Clamp Ultrasonic Flowmeters are designed to be used by mounting from the outside of the pipe to measure the flow rate of the fluid passing through a closed line. It utilizes the latest technologies in ultrasonic signal transmission/reception, digital signal processing and transit time measurement. Thanks to special signal quality monitoring and self-adaptive technologies, it allows the system to automatically adapt optimally to different pipe materials. Pressure drop due to off-line mounting of the fixing technology It has no moving parts, no risk of leakage, no risk of contamination, no risk of corrosion and no pressure dependence.

Technicial Specifications

• ConnectionDN15...DN6000
• Measuring Range -10...+10 m/s Bi-directional
• Display2x20 Character LCD Display
• Output4...20 mA, Pulse,RS-485 (HART Opt.)
• Sensitivity<±1%
• Supply10...28VDC, 230 VAC
• Temperature -40..+90°C (Op. -40 ...160°C)
• ServiceLiquids
• ProtectionIP66 Indicator, IP68 Transducers
• CommunicationRS485, MODBUS
• Measuring PrincipleTransit Time

Features

• Easy Mounting with Clamp
• Magnet Sensor for Metal Pipes
• No Pressure Loss
• Economic
