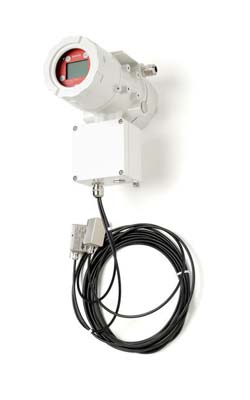

Stationary Ultrasonic Flowmeter

Technicial Specifications

• ConnectionDN10...DN3000
• Measuring Range0.01...25m/sec
• IndicatorLCD Indicator
• Output4...20 mA, Pulse
• Sensitivity<±0.5%
• Supply9...36VDC (Opt; 100...240VAC)
• Temperature -50 … +115 °C
• CommunicationRS232, MODBUS RTU, Profibus PA
• Measurement Channel1 or 2
• Protection Class+ II 2G Ex de IIB T6 ATEX Certified
• Internal Record 100,000 Measurements max.
