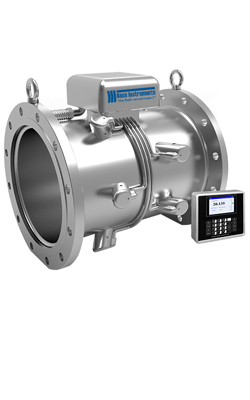

Line Type Ultrasonic Flowmeter

General Description

Line Type Ultrasonic Flowmeters are designed to measure the flow rate of the fluid passing through a closed line. Line Type Ultrasonic Flowmeters are connected serially to the lines. It is used in cases where pipes are made of concrete or similar materials. There is almost no pressure loss.

Technicial Specifications

• ConnectionDN40...DN500
• Measuring Range -20...+20 m/sec
• Display2x20 Character LCD Display
• Output4...20 mA, Pulse
• Sensitivity<±1%
• Supply10...28VDC, 230 VAC
• Temperature-40...+110 Opt.160
• Wet PartsCarbon Steel
• ProtectionIP67 Sensor,IP65 Indicator
• ServiceLiquids
• ProtectionIP65, Opt. Exproof
• CommunicationRS485, MODBUS
• Measuring PrincipleTransit Time

Features

• Low Pressure Loss
• High Sensitivity
