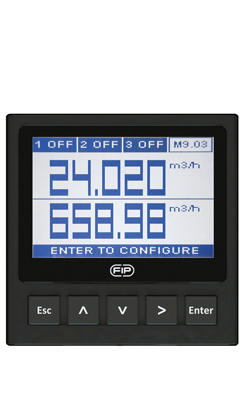

Dual Channel Display

General Description

Dual Channel Indicator is designed for pulse output flow sensors and has a structure where you can easily read the instantaneous and total values and monitor the output signals thanks to its large graphic LCD screen. It has two separate indicators: resettable and non-resettable. Measurements can be made by connecting two different flow sensors to the same device. The flow amount of the second sensor can be subtracted from the first sensor, or the flow value of the first sensor can be subtracted from the second sensor and displayed on the screen like this. All outputs are configurable. Thanks to its special apparatus, it can be mounted directly on flow meters.

Technicial Specifications

• Connection96x96 mm Panel Type
• Input2xPulse (PNP or NPN)
• IndicatorGraphic LCD
• Output2x4...20mA, Pulse, 2 Relays
• Temperature -20 ... +70°C
• Supply12-24 VDC
• ProtectionIP65 (Front Panel)
• OtherSimulation Feature

Features

• Graphic Indicator
• Units Can Be Selected On The Display
• Simulation Feature
• Resettable and Non-Resettable Adder
• Two Different Flow Sensors Can Be Monitored on the Same Screen
