General Description

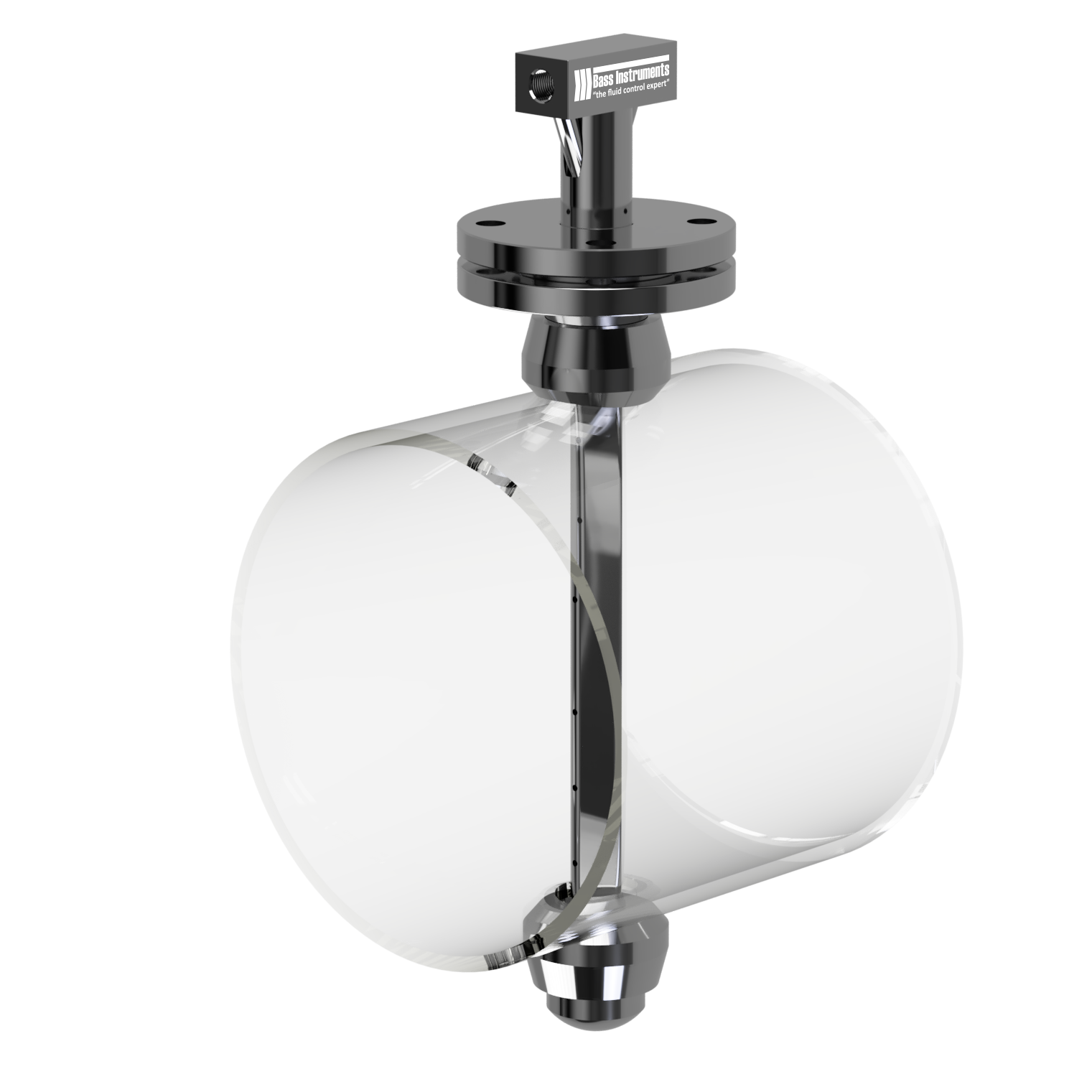

The mean pitot tube provides unmatched measurement precision and reliability. It is long-lasting with its solid one-piece structure. Thanks to the special design of the sensor, the flow gently licks the sensor and prevents vibration. Since it does not take up much space in the pipe, pressure loss is almost non-existent. 40 Bar pressure resistance and 700°C max. Our product, which has an operating temperature, can easily work under harsh conditions. Verabar Flow Element, which measures with an error of ±0.5% of the reading value, can be manufactured from AISI316 SS, Hastelloy-C or Technopolymer material, depending on the process in which it will be installed. Main applications: Natural Gas, Cooling Water / Chiller, Saturated Steam, Compressed Air , Feed Waters, Superheated Steam, Demineralized Waters, Hydrocarbon Gases or Liquids, Cryogenic Liquids and Flue Gases. The pipe diameters it can be connected to are from DN50 to DN6000.
Technicial Specifications
- ConnectionDN50...DN6000
- Measuring Range Depending on the Desired Value
- IndicatorOps; LCD
- Output4...20mA + HART, (Ops; Pulse)
- Sensitivity<±1% (Opt;±0.5%)
- Supply12...45 VDC
- Pressure40 Bar max. (Ops; 410 Bar max.)
- ServiceLiquid, Gas, Steam
- Temperature 450°C (Opt; 815°C)
- Wet PartsAISI316 SS
- ProtectionIP68
Features
- Very Low Pressure Loss
- Strong Design Resistant to Heavy Conditions
- Ideal for High Pressure and High Temperatures
- Ideal for High Pressure and High Temperatures
- Long lasting
