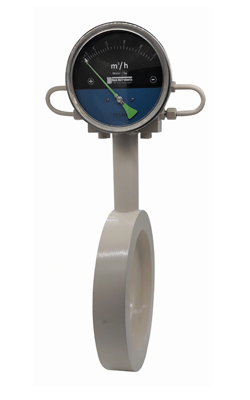

Analog Orifice Flowmeter

General Description

Analog Orifice flowmeters are instruments that enable reliable measurement of liquids and gases, especially in places where process conditions are harsh. FOFF series is generally preferred in fire systems and pump monitoring systems. The body material is optionally made of carbon steel or stainless steel. Optionally, a contact output feature can be added. It can be used easily on artificial and vertical lines.

Technicial Specifications

• ConnectionDN40...DN300
• Measuring Range3...10 m3/h- 500...2000 m3/h
• IndicatorAnalog Pointer
• OutputOptional Contact
• Sensitivity<±2.5% T.S
• Supply12...45 VDC
• Pressure100 Bar max.
• ServiceLiquid and Gas
• Temperature120 °C max.
• Measuring Ability65:1
• Wet PartsCarbonsteel or AISI316 SS
• ProtectionIP67

Features

• Easy assembling
• Strong Design Resistant to Heavy Conditions
• No Moving Parts
