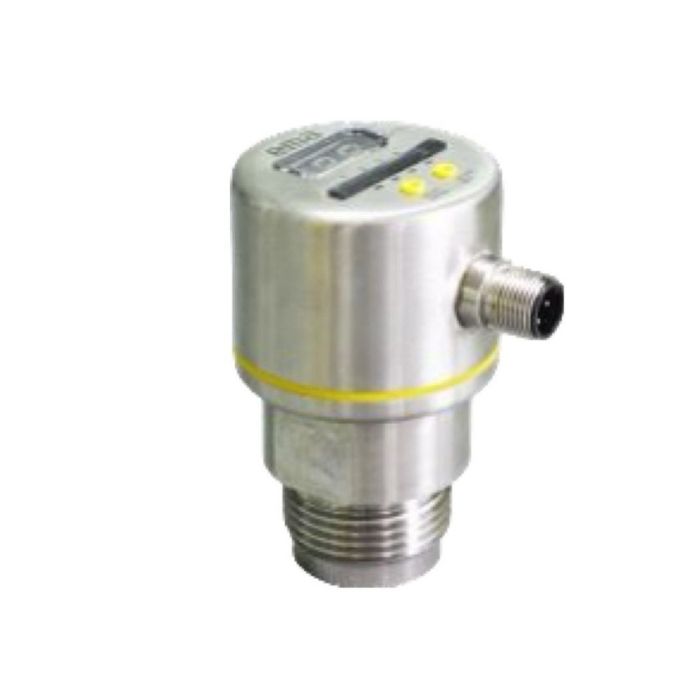

Ema VS1003 Ultrasonic Level Sensor

Ultrasonic Level Sensors

-For liquid, powder, small bulks and flat surface materials

-Non-contact and continuous measurement

-Sensing materials: Liquids

-Adopts temperature compensation technique on speed & frequency

Independent of changing process conditions

• Density
• Waves
• Foam

-Dual outputs OUTPUT 1 & OUTPUT 2 (Analogue, Switching)

-Anti-corrosive type is suitable for volatile liquids or vapors

-Mini type is designed for small tanks within 3 meters

Technical Information

– Maximum detection range: 8M standard type, mini type, 3M

– Minimum resolution : 1mm

– Accuracy: ±0.1%

– Output : 4-20mA, NPN/PNP, no/NC

– Frequency : 50khz standard type, mini type 100khz

– Housing material: Standard type Aluminum, Mini type SS316L

– Voltage : 20...36vdc

– Ambient temperature: Standard type -40…80℃, Mini type -20…70℃
