General Features

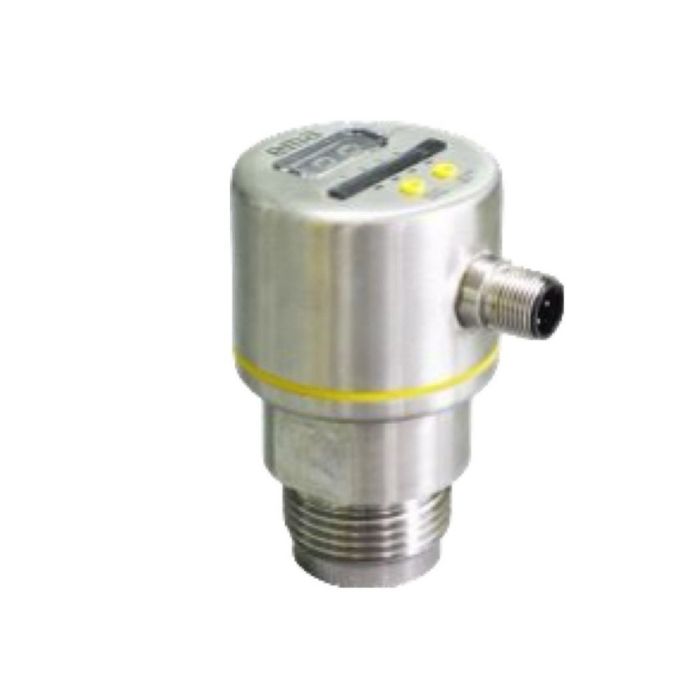

Ultrasonic Level Sensors
-For liquid, powder, small bulks and flat surface materials
-Non-contact and continuous measurement
-Sensing materials: Liquids
-Adopts temperature compensation technique on speed & frequency
Independent of changing process conditions
- Density
- Waves
- Foam
-Dual outputs OUTPUT 1 & OUTPUT 2 (Analogue, Switching)
-Anti-corrosive type is suitable for volatile liquids or vapors
-Mini type is designed for small tanks within 3 meters
Technical Information
– Maximum detection range: 8M standard type, mini type, 3M
– Minimum resolution : 1mm
– Accuracy: ±0.1%
– Output : 4-20mA, NPN/PNP, no/NC
– Frequency : 50khz standard type, mini type 100khz
– Housing material: Standard type Aluminum, Mini type SS316L
– Voltage : 20...36vdc
– Ambient temperature: Standard type -40…80℃, Mini type -20…70℃
Technical Specifications
| Type : External |
| Thread : G1"A |
| Temperature : -20...+70 |
| Sensing Range : 0.2..3 m |
| Output 1 : PNP-NO/NC NPN-NO/NC |
| Output 2 : PNP-NO/NC NPN-NO/NC |
| Housing : Stainless Steel 316L |
| Accuracy : ±0.1% |
| Supply Voltage : 18-36VDC |
| Protection : IP68 |
| Display : Yes |
| Programmable : Yes |
