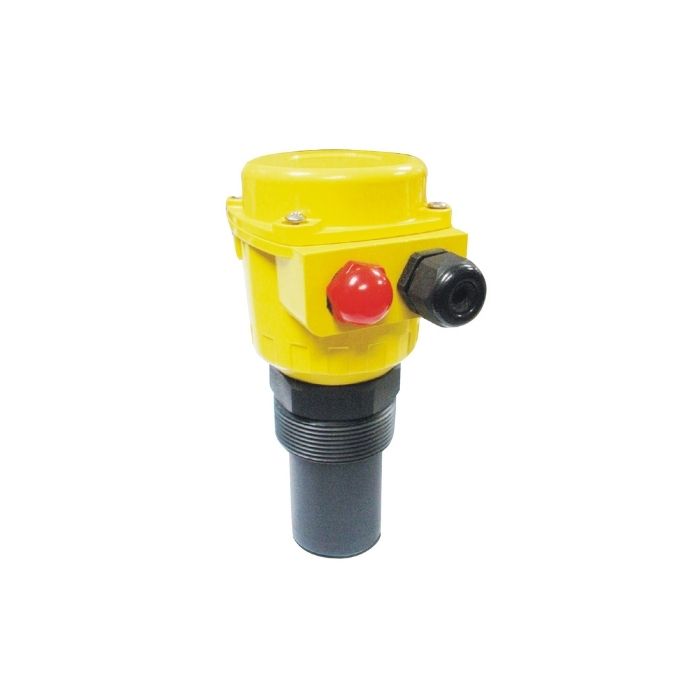

Ema VS0001 Ultrasonic Level Sensor

General Features

Ultrasonic Level Sensors

-For liquid, powder, small bulks and flat surface materials

-Non-contact and continuous measurement

-Sensing materials: Liquids

-Adopts temperature compensation technique on speed & frequency

Independent of changing process conditions

• Density
• Waves
• Foam

-Dual outputs OUTPUT 1 & OUTPUT 2 (Analogue, Switching)

-Anti-corrosive type is suitable for volatile liquids or vapors

-Mini type is designed for small tanks within 3 meters

Technical Information

– Maximum detection range: 8M standard type, mini type, 3M

– Minimum resolution : 1mm

– Accuracy: ±0.1%

– Output : 4-20mA, NPN/PNP, no/NC

– Frequency : 50khz standard type, mini type 100khz

– Housing material: Standard type Aluminum, Mini type SS316L

– Voltage : 20...36vdc

– Ambient temperature: Standard type -40…80℃, Mini type -20…70℃

Technical Specifications

Type : External

Thread : G2"A

Temperature : -40...+80

Sensing Range : 0…8 m

Output 1 : PNP-NO/NC NPN-NO/NC

Output 2 : 4-20mA

Sensor material : PVDF

Accuracy : ±0.1%

Supply Voltage : 18-36VDC

Protection : IP65

Display : No

Programmable : Yes
