General Features
Modular Rotating Paddle Level Switches
What is a modular design? We see modularity is the trend in the future. ema rotating paddle level switches are divided into five components: main part, coupling, extension, process connection (optional), and paddle. The user can make a selection according the demand; moreover, it is easy to select and assemble the main part, extension and paddle. The benefits of modular design include flexible collocation and quick delivery, so as to enhance the competitive advantage for the customer. When the engineer regularly maintain the product, it only need for parts replacement without replacing the whole set. Thereby it could reduce maintenance cost and time. If there are containers with a variety of depth needed to match different length of shaft, the user just need to select the suitable length of extension.

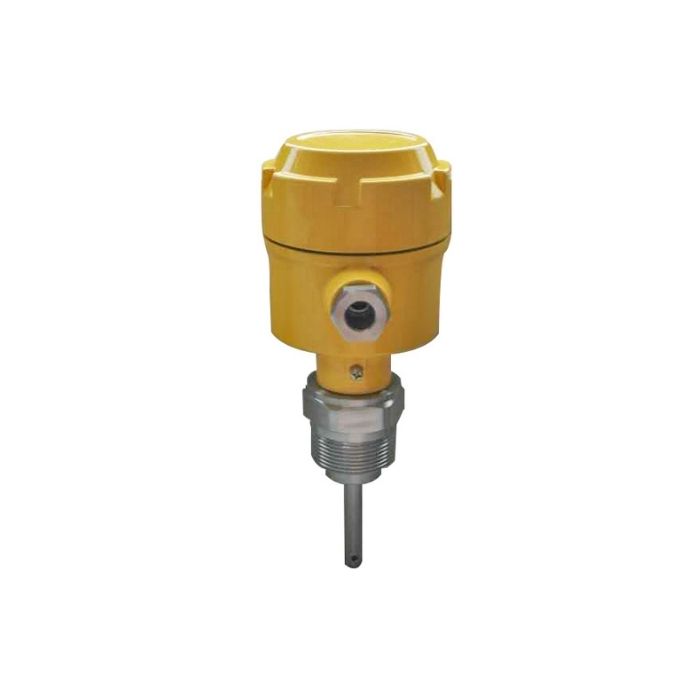

Ema SRP/SRT/SRE Series is a brand new product. It supports five kinds of connections: standard, nut, flange, fixture and adapter. Thanks to advanced technology, the housing is created to be delicate and light-weighted. Three options are available: plastic, metal and explosion-proof. The switches can be used to the level measurement in metallurgy, environmental industry, electricity, chemistry, cement and food industry etc.
– Suitable for solids and powders.
– Standard type, protected shaft type, high temperature type, high temperature type and extreme ex-proof type options are available.
– Dust-proofing with special oil for insulation.
– Rotation torque can be adjusted.
– Double ball bearing design. The strength of high-strength available.
– Small and compact is designed for simple installation.
– Guarantees the service life of the gear motor and robust stainless steel mechanical parts.
– You do not need to disassemble the whole set for maintenance.
– Very light which is suitable to detect solid cast parts.
– High temperature type MAX 200 ℃, high temperature type Max 450 ℃ is.
– Ex-proof type dust includes blast and air blast.
Technical Specifications
| Type : Standard |
| Housing Material : Ex-Proof |
| Maksimum Sıcaklık : -20..+70 °C |
| Thread : G 1½” |
| Supply Voltage : 220VAC |
| Output : SPDT 5A/250VAC |
| Shaft Length : 50mm |
| Shaft Material : Stainless Steel 304 |
