General Features

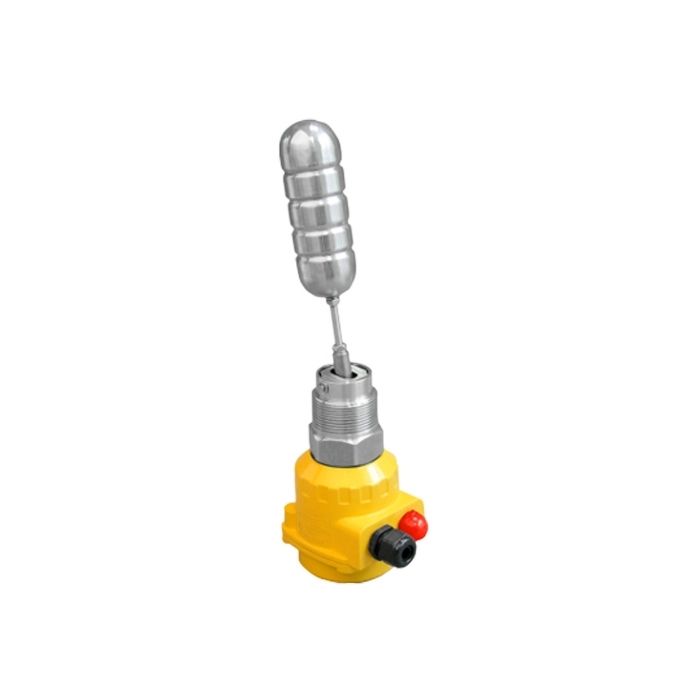

Float Level Switches
- Suitable for liquid
- Point to Point level measurement
- Side mounting.
- Simple operation and easy installation.
- NO or NC output.
- The user can choose LS0003 against strong acid/alkali liquid
- It is reliable over 2 million working cycles
- LS1 Series can reach up to 200℃
- Electric design: AC/DC
- Output: no/NC
- Ambient pressure: 10 bar
- Operating temperature: LS0 Series -20…80/100℃,LS1 Series -20…200℃
Technical Specifications
| Medium Temperature : -20…+200 |
| Supply Voltage: 240 VAC/DC |
| Housing Material : Stainless Steel 316L |
| Thread : G1-1/2" |
| Output : NO/NC |
| Power connection : M20 x P1.5 |
| Contact current : 3A |
| Operating Pressure : 10 Bar |
| Protection : IP67 |
